General Information |
||
|---|---|---|
| PD No. | VLEN2-2514SW-H1 | |
| PD Line | FA Series | |
| Type | SWIR Lenses | |
Optical Specifications |
||
|---|---|---|
| Resolution | 80lp/mm | |
| Image Size | 1" CCD/CMOS | |
| Focal Length | 25 mm | |
| FOV (D/H/V) | 30° | |
| Aperture, F/# | F1.4 | |
| Back Focus | 11.46 mm | |
| Distortion | ≤-0.96% | |
| Iris | Manual | |
Design |
||
|---|---|---|
| Mount | C-mount | |
| Filter Screw Size | M34×0.5mm | |

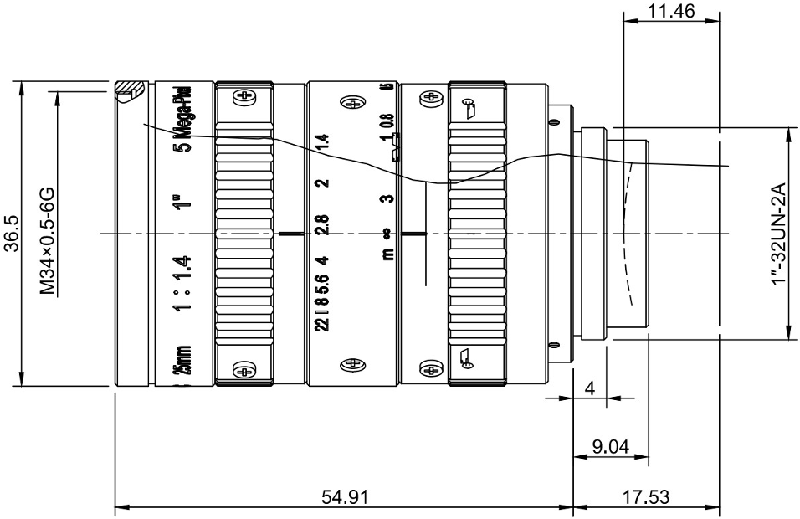

| Dimension | ?36.5×54.91 mm | |
| Temperature Range | -10- 50°C（Working），-20- 60°C（Storage） | |
| Weight | NA | |
