BTL-0.072X-258-125(LM)
1. Optimized for 1/2.5"~1.1" C-Mount cameras;
2. Largest FOV from 26mm upto 300mm;
3. Excellent resolution for high pixel cameras;
4. Low distortion, good telecentricity, big aperture and big depth of field for high end application.
Inquire now
Shop now
Product Description

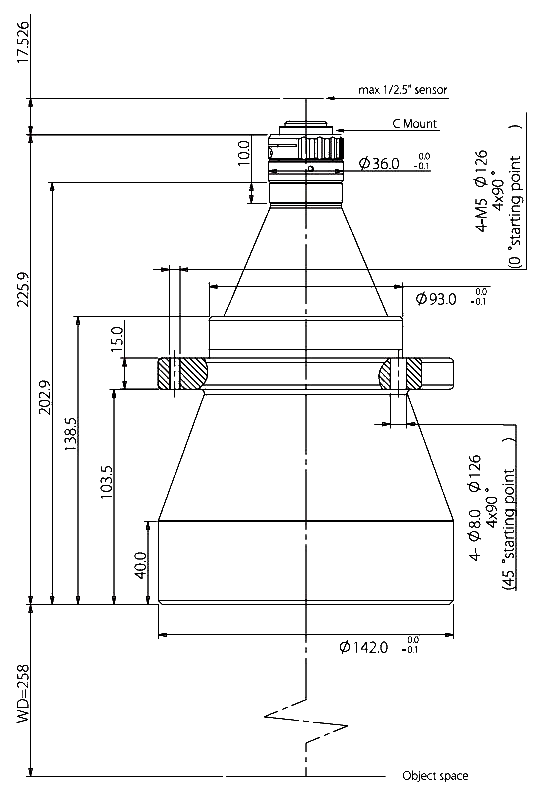

Technical Drawing
Documents & Downloads

Information

PD No. CP-0704
PD Line BTL Series
Type Bi-Telecentric Lenses

Lens Data

FOV 100 Φmm
Mag.(x) 0.072x
WD 258±4 mm
Max. Sesnor Size 7.2(1/2.5") Φmm
F/# F4.2
MTF >85lp/mm
D.O.F ±84.8 mm@F11
Distortion <0.1%
Telecentricity <0.1°
I/O 501±4 mm

Design

Lens Mount C-mount
Length 225.9 mm
Temperature -10 - 50°C(Operating),-20 - 60°C(Storage)
Weight 3.1 Kg

Telecentric lens


-->
