General Information |
||
|---|---|---|
| PD No. | CP-1093 | |
| PD Line | CB Series | |
| Type |
Standard FA Lens
|
|
Optical Specifications |
||
|---|---|---|
| Resolution | 10 Mega Pixels | |
| Image Size | 2/3" CCD/CMOS | |
| Focal length | 5.0 mm | |
| Aperture, F/# | F1.8 | |
| Flange Back | 17.526 mm | |
| Back Focus | 8.54 mm | |
| M.O.D | 0.1 m | |
|
FOV(D×H×V) |
D:95.5° H:82.7° V:66.8° |
|
| TV Distortion | <5% | |
| TTL | 60.526 mm | |
| Relative Illumination | 43% | |
| Focus Range | NA | |
| Iris | Manual | |
| Focus | Manual | |
| Max Chief Ray Angle | NA | |
| Coating Wavelength |
400-950 nm
|
|

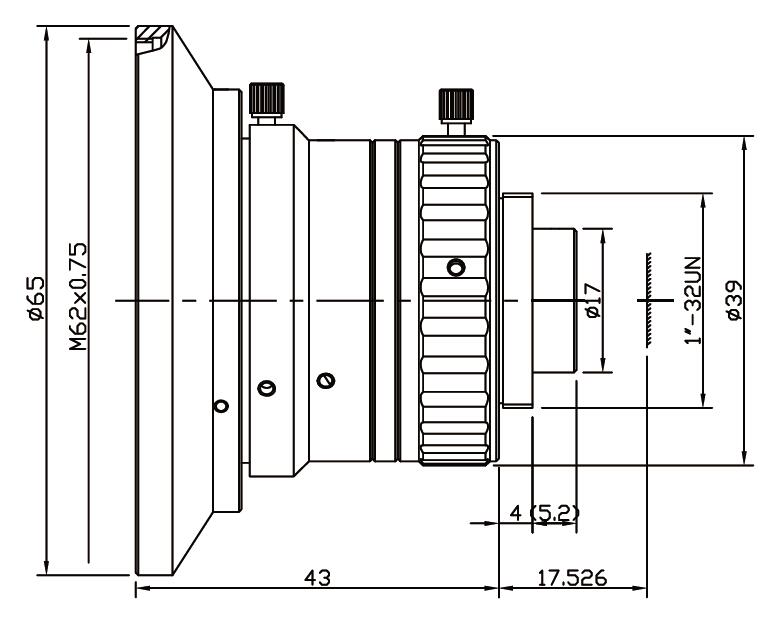

Mechanical Parameters |
||
|---|---|---|
| Mount | C-mount | |
| Filter Size | M62× 0.75 | |
| Built-in ir-cut | NA | |
| Front/Rear Effective Dia. | NA | |
| Dimension | Φ65 × 43 mm | |
| Temperature Range | -10- 50°C（Working），-20- 60°C（Storage） | |
| Weight | 150g | |
