Information |
||
|---|---|---|
| PD No. | LEO 100MSC-8CM | |
| PD Line | LEO Series | |
Sensor |
||
|---|---|---|
| Sensor Vendor | Sony | |
| Sensor | IMX461 | |
| Shutter | Rolling Shutter | |
| Sensor Size | 55 mm | |
| Sensor Type | CMOS | |
| Resolution | 11520 px x 8740 px | |
| Pixel size | 3.76 μm x 3.76 μm | |
| Frame Rate | 8.1 fps | |
| Mono/Color | Mono | |
EMVA Data |
||
|---|---|---|
| Dynamic range | 75.0 dB | |
| Signal-to-Noise Ratio | 45.0 dB | |
Camera Data |
||
|---|---|---|
| Interface | Cameralink | |
| Pixel Bit Depth | 8 / 10 / 12 bits | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O | 1 opto-isolated input, 1 opto-isolated output, 1 RS232 | |
| Power Supply | 24 VDC | |
Design |
||
|---|---|---|

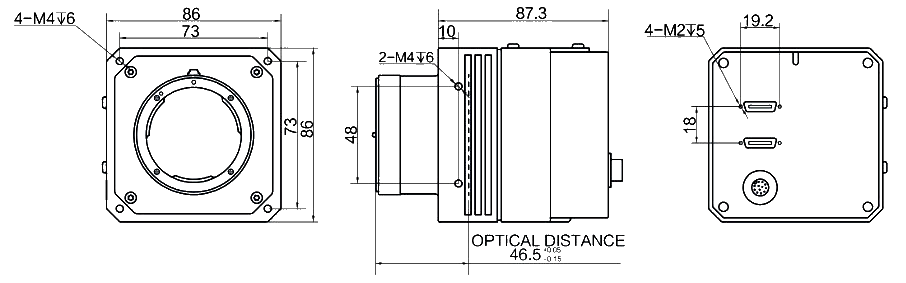

| Dimension(L x W x H) | 100.0 × 100.0 × 87.2 mm | |
| Lens Mount | M72 | |
| Operating Temperature | 0- 50°C（Working），-30- 70°C（Storage） | |
| Weight | 1700g | |
Software Environment |
||
|---|---|---|
| Driver&SDK | LEO Series Camera Software Suite or 3rd party Cameralink Software | |
| Operating System | Windows | |
| Conformity | Cameralink , GenICam | |
