Information |
||
|---|---|---|
| PD No. | MARS31MS-3GC | |
| PD Line | Mars Series | |
Sensor |
||
|---|---|---|
| Sensor Vendor | Sony | |
| Sensor | IMX 342 | |
| Shutter | Global Shutter | |
| Sensor Size | APS-C | |
| Sensor Type | CMOS | |
| Resolution | 6464 px x 4852 px | |
| Pixel size | 3.45 μm x 3.45 μm | |
| Frame Rate | 3 fps | |
| Mono/Color | Color | |
EMVA Data |
||
|---|---|---|
| Dynamic range | 75.0 dB | |
Camera Data |
||
|---|---|---|
| Interface | GigE | |
| Pixel Bit Depth | 12 bits | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O | 3 (opto-isolated) input / output, 1 RS232 serial port， | |
| Power Supply | 12-24 VDC | |
Design |
||
|---|---|---|

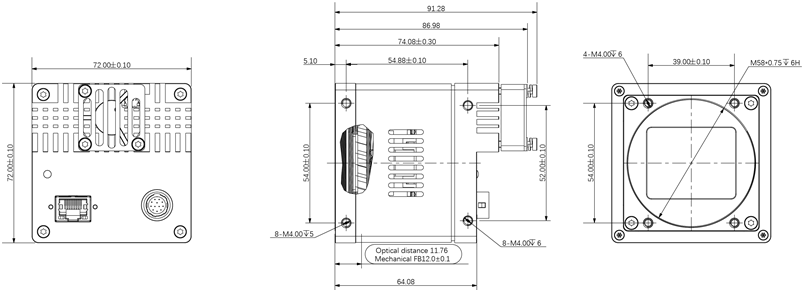

| Dimension (L x W x H) | 72 mm x 72 mm x 78.9 mm | |
| Lens Mount | M58/F-Mount | |
| Working Temperature | -30 - 50°C（Operating），-30 - 80°C（Storage） | |
|
|
||
Software Environment |
||
|---|---|---|
| Driver , SDK | Mars Series Camera Secondary Development Kit（iCentral）or Third-party Software meeting with GigE Vision Protocol | |
| Operating System | Windows，Linux，Arm | |
| Conformity | GigE Vision and GenICam | |
