General Information: |
||
|---|---|---|
| Model Number | CP-1550 | |
| Series | CB Series | |
| Type | Standard FA Lens | |
|
|
||
|---|---|---|
| Resolution | 9 Mega Pixels | |
| Image Size | 1" CCD/CMOS | |
| Focal length | 6 mm | |
| Aperture, F/# | F1.8~1.6 | |
| Flange Back | 17.526mm | |
| Back Focus | 13.57mm | |
| M.O.D | 0.1 m | |
|
FOV(D×H×V) |
D:107.5° H:95.4° V:78.4° |
|
| TV Distortion | 2.3% | |
| TTL | 95.326 mm | |
| Relative Illumination | NA | |
| Focus Range | NA | |
| Iris | Manual | |
| Focus | Manual | |
| Max. Incident Angle | NA | |
| Coating Wavelength | 400-1100 nm | |
|
|
||
|---|---|---|
| Mount | C-mount | |
| Filter Size | NA | |
| Built-in ir-cut | NA | |
| Front/Rear Effective Dia. | Front: Φ58.6mm / Rear: Φ15.05mm | |

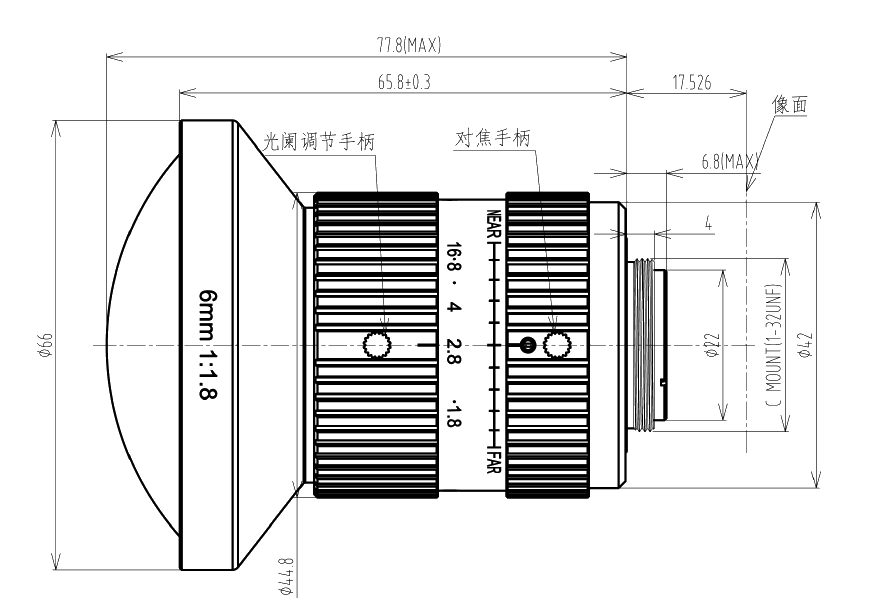

| Dimension | Φ66x77.8mm | |
| Temperature Range | -10- 50°C（Working），-20- 60°C（Storage） | |
| Weight | NA | |
