Information |
||
|---|---|---|
| PD No. | DM-Q1200S-M0CM-00ST | |
| PD Line | DataMagic Series | |
Performance |
||
|---|---|---|
| Symbologies |
1D：Code 39，Code 93，Code 128，CodaBar，EAN8，EAN13，UPCA，UPCE，ITF14，Matrix 25，MSI，China Post，Code 11 2D：QR Code，Data Matrix Stack codes：PDF417 |
|
| Frame Rate | 28 fps | |
| Reading Speed | 84 codes/sec | |
| Sensor size | 1” | |
| Sensor type | CMOS, Global Shutter | |
| Resolution | 4096 × 3072 px | |
| Pixel size | 3.2 μm x 3.2 μm | |
| Exposure time | 60μs ~ 1s | |
| Mono/color | Mono | |
| Protocols | Serial,TCP Client,TCP Server,FTP,ModBus,Fins,SLMP,MELSEC | |
Electrical Data |
||
|---|---|---|
| Data interface | GigE | |
| I/O | 3 non-isolated input, 3 non-isolated output, 1 RS-232 input, and 1 RS-232 output | |
| Power | 12-24 V | |
| Power Consumption | 12 W@24V | |
Design |
||
|---|---|---|
| Protection | IP67 | |

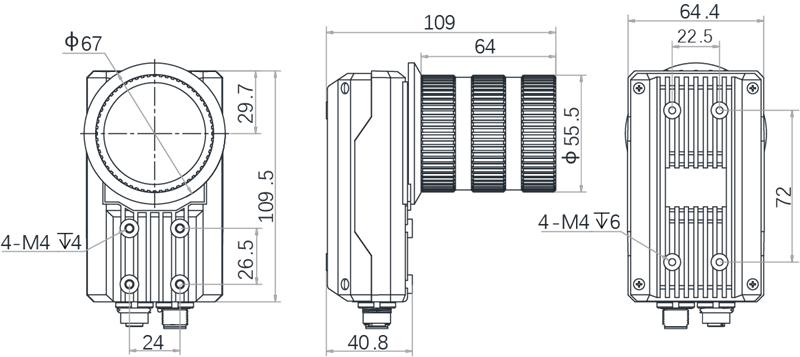

| Dimensions | 109.5 mm × 64.4 mm × 109 mm | |
| Lens | C-Mount | |
| Lighting | / | |
| Lens cap | Transparent | |
| Working Temperature | 0- 50°C（Operating），-30- 70°C（Storage） | |
| Weight（Typical) | 470g | |
Software Environment |
||
|---|---|---|
| Driver , SDK | DM-Datum | |
