Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | CLW2 Series | |
| Type | Bi-Telecenteic Lenses | |
Lens Data |
||
|---|---|---|
| Mag.(x) | 0.3x | |
| WD | 110±2 mm | |
| MAX. Sensor Size | 9.0 Φmm(1/1.8") | |
| Field of View |
1/3” (4.8x3.6) 16.0x12.0 1/2” (6.4x4.8) 21.3x16.0 1/1.8” (7.13x5.37) 23.8x17.9 |
|
| F/# | F9 | |
| MTF | >100lp/mm | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| NA | 0.0167 | |
| Resolution | 20.1 μm | |
| D.O.F | 8.0 mm | |
Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| With Coaxial Light | Yes | |
|
Aperture adjustment |
No | |

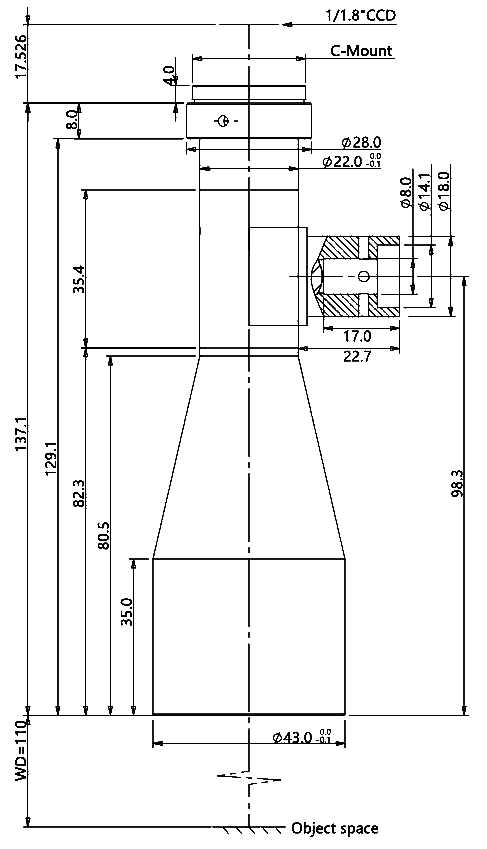

| Lenght | 137.1 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
