Information |
||
|---|---|---|
| PD No. | iBoostX-200TGSW130M-SJ-M42 | |
| PD Line | iBoostX Series | |
Sensor |
||
|---|---|---|
| Sensor Type | InGaAs CMOS Image Sensor | |
| Sensor Size | 1.5” | |
| Resolution | 1280 x 1024 | |
| Pixel Size | 15μm x 15μm | |
| Frame Rate [Fps] |
200fps |
|
| Exposure time | 25μs - 5s | |
| Spectral Range | 900nm - 1700nm | |
EMVA Data |
||
|---|---|---|
| Dynamic range | 69.2dB (LG), 63.2dB (MG), 57.4dB (HG) (Reference Only) | |
| Readout Noise | 1.3 DN (LG), 2.7 DN (MG), 5.0 DN (HG) (Reference Only) | |
| Full Well Capacity | 1.9 Me-(LG), 118.75 Ke-(MG), 33.75 Ke-(HG) (Reference Only) | |
|
Max SNR Dark Current |
65.4 dB (LG), 48.5 dB (MG), 40.7 dB (HG) (Reference Only) 30 e- @0.1V & 18℃ (Reference Only) |
|
Camera Data |
||
|---|---|---|
|
Interface Memory |
10GigE 512MB |
|
| Output Format | Mono 8 / Mono 14 | |
| I/O | One opto-isolated input, one opto-isolated output, two non-isolated input and output | |
| Power Supply | DC12V | |
Design |
||
|---|---|---|

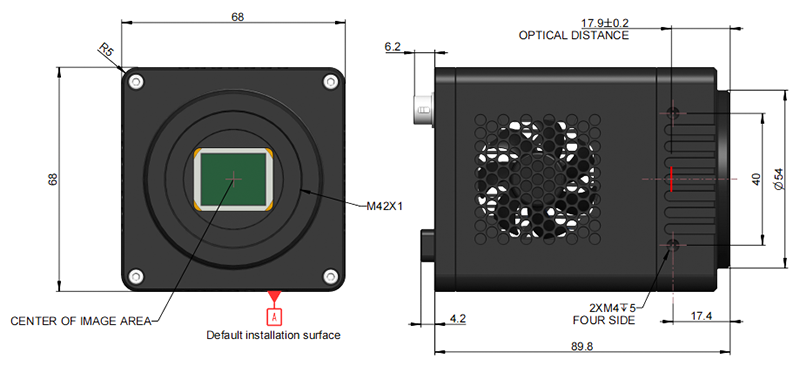

| Dimension | 68mm x 68mm x 89.8mm (<485g) | |
| Lens Mount | M42 | |
| Operating Temperature | -40~85 °C (Storage), -30~60℃ (Working) | |
Software Environment |
||
|---|---|---|
| Software | Complete SDK Development Package / iBoostX | |
