Information |
||
|---|---|---|
| PD No. | iBoostX-22GSW500M-SA | |
| PD Line | iBoostX Series | |
Sensor |
||
|---|---|---|
| Sensor Type | InGaAs | |
| Sensor | Sony IMX992 Sensor | |
| Sensor Size | 1/1.4" | |
| Resolution | 2560× 2048 | |
| Pixel Size | 3.45 x 3.45 μm | |
| Frame Rate [Fps] |
22 @2560 x 2048 88 @1280 x 1024 |
|
| Exposure time | 15μs-60s | |
| Spectral Range | 0.4μm - 1.8μm | |
EMVA Data |
||
|---|---|---|
| Dynamic range | 51.36dB(HCG) 51.47dB(LCG) | |
| SNR | 46.17dB(HCG) 48.45dB(LCG) | |
| Sensitivity | TBD | |
| Dark current | TBD | |
Camera Data |
||
|---|---|---|
| Interface | GigE | |
| Pixel Bit Depth | 8 Bit / 12 Bit | |
| I/O |
One opto-isolated input, one opto-isolated output, two non-isolated input and output |
|
| Power Supply | DC 12V | |
Design |
||
|---|---|---|

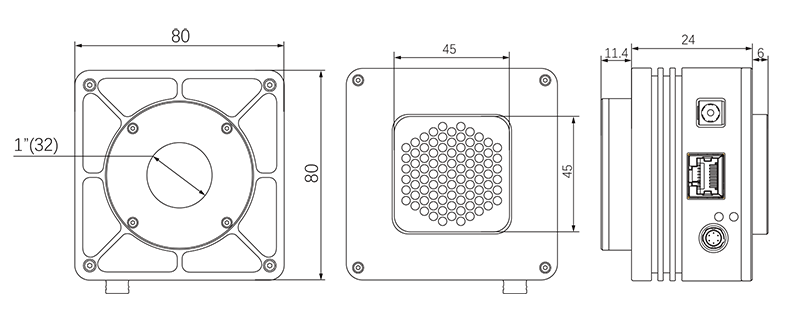

| Dimension | 80 × 80 × 45.5 mm (<390g) | |
| Lens Mount | C-mount | |
| Operating Temperature | -40~85 °C (Storage), -20~60°C (Working) | |
Software Environment |
||
|---|---|---|
| Operating System | Windows，Linux | |
