Information |
||
|---|---|---|
| PD No. | MARS25MP-4GC | |
| PD Line | Mars Series | |
Sensor |
||
|---|---|---|
| Sensor Vendor | ON Semiconductor | |
| Sensor | PYTHON 25K | |
| Shutter | Global Shutter | |
| Sensor Size | APH-S | |
| Sensor Type | CMOS | |
| Resolution | 5120 px x 5120 px | |
| Pixel size | 4.5 μm x 4.5 μm | |
| Frame Rate | 4 fps | |
| Mono/Color | Color | |
EMVA Data |
||
|---|---|---|
| Dynamic range | 59.0 dB | |
| Signal-to-Noise Ratio (typical) | 41.0 dB | |
Camera Data |
||
|---|---|---|
| Interface | GigE | |
| Pixel Bit Depth | 8 / 10 bits | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O | Opto-isolated input x 3, opto-isolated output x 3, and RS232 x 1 | |
| Power Supply | PoE or 12-24 VDC | |
Design |
||
|---|---|---|
| Design | Compact industrial design | |

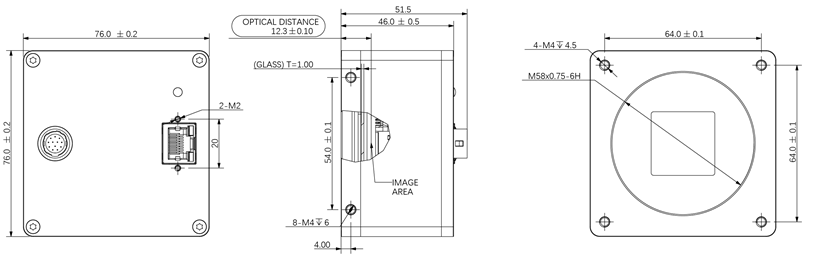

| Dimension (L x W x H) | 72 mm x 72 mm x 46 mm | |
| Lens Mount | M58 | |
| Working Temperature | -30 - 50°C（Operating），-30 - 80°C（Storage） | |
Software Environment |
||
|---|---|---|
| Driver , SDK | Mars Series Camera Secondary Development Kit（iCentral）or Third-party Software meeting with GigE Vision Protocol | |
| Operating System | Windows，Linux | |
| Conformity | GigE Vision and GenICam | |
