Information |
||
|---|---|---|
| PD No. | LEO 12MS-68Tgc | |
| PD Line | LEO Series | |
Sensor |
||
|---|---|---|
| Sensor Vendor | Sony | |
| Sensor | IMX253 | |
| Shutter | Global Shutter | |
| Sensor Size | 1.1" | |
| Sensor Type | CMOS | |
| Resolution | 4096 px x 3000 px | |
| Pixel size | 3.45 μm x 3.45 μm | |
| Frame Rate | 68 fps | |
| Mono/Color | Color | |
EMVA Data |
||
|---|---|---|
| Dynamic range | >71.0 dB | |
| Exposure Time | 2 μs ~ 10 sec | |
Camera Data |
||
|---|---|---|
| Interface | 10GigE | |
| Pixel Bit Depth | 8 / 10 / 12 bits | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O | 1 input(opto-isolated)，1 output(opto-isolated) ，1 bidirectional configurable non-isolated I/O, 1 RS232 | |
| Power Supply | 9-24 VDC | |
Design |
||
|---|---|---|

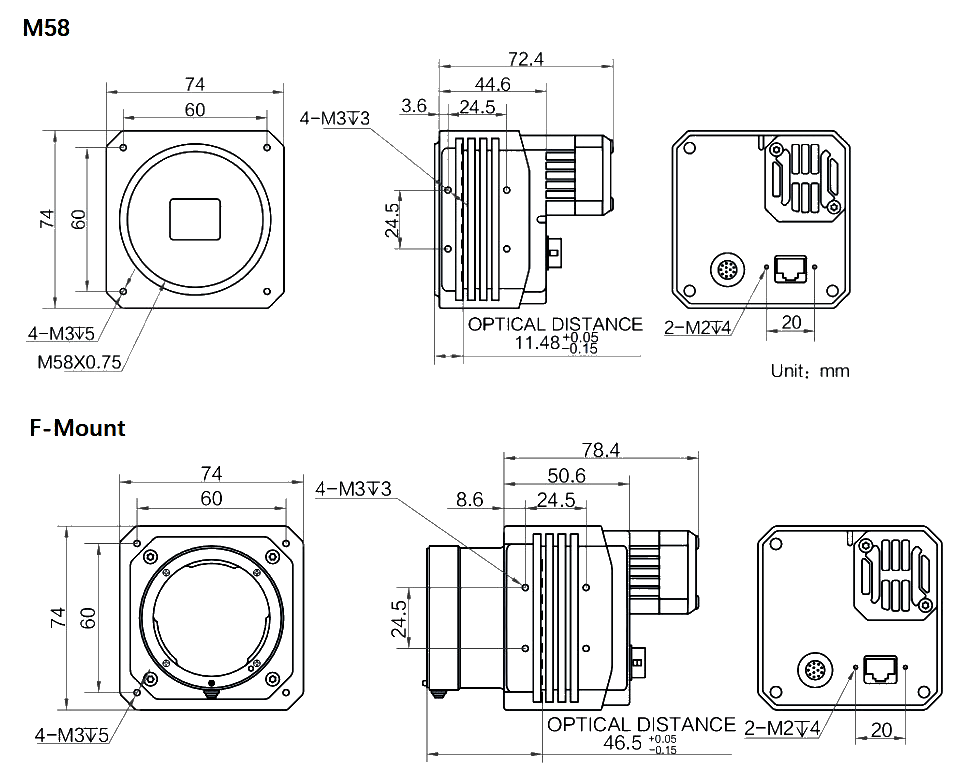

| Dimension(L x W x H) |
M58口：74mm × 74mm × 72.4mm F口：74mm × 74mm × 78.4mm |
|
| Lens Mount | M58 & F-Mount | |
| Working Temperature | 0- 50°C（Operating），-30- 70°C（Storage） | |
| Weight |
M58口：450g F口：600g |
|
Software Environment |
||
|---|---|---|
| Driver , SDK | LEO Series Camera Secondary Development Kit（iDatum）or Third-party Software meeting with GigE Vision Protocol | |
| Operating System | Windows | |
| Conformity | GigE Vision 和 GenICam | |
