Information |
||
---|---|---|
PD No. | CP-0823 | |
PD Line | LT2 Series |
Input Features |
||
---|---|---|
Voltage Range | AC100~240V | |
PMW Frequency | 50/60HZ | |
Inrush Current | 15A(AC100V),30A(AC240V)*COOL START |
Output Features |
||
---|---|---|
Output Voltage | DC48V 5A MAX | |
Output Power | 4 channels in total:60W MAX | |
Strobe Lighting Time | 10~990us | |
Light Intensity | The light intensity is set as 10% to 100% of the pulse width | |
Lighting Delay | 8us MAX |
Trigger Features |
||
---|---|---|
Trigger Mode | Positive/Negative | |
Trigger Input Voltage | 5~24V |
Over voltage protection |
||
---|---|---|
Activated when output current overload 7% or higher, reset by reopening the power supply |
Environment |
||
---|---|---|
Operating Temperature | 0 ~ 40°C | |
Storage Temperature | -10 ~ 50°C |
Others |
||
---|---|---|

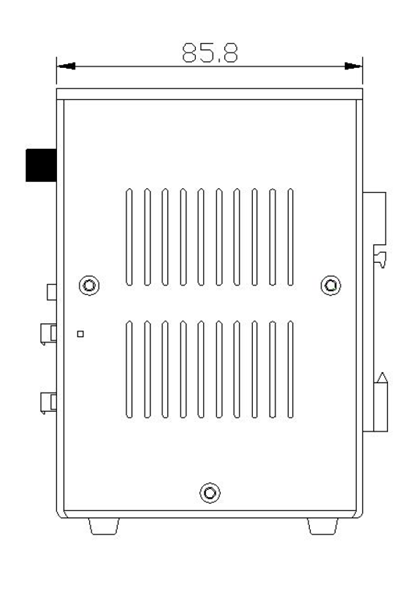

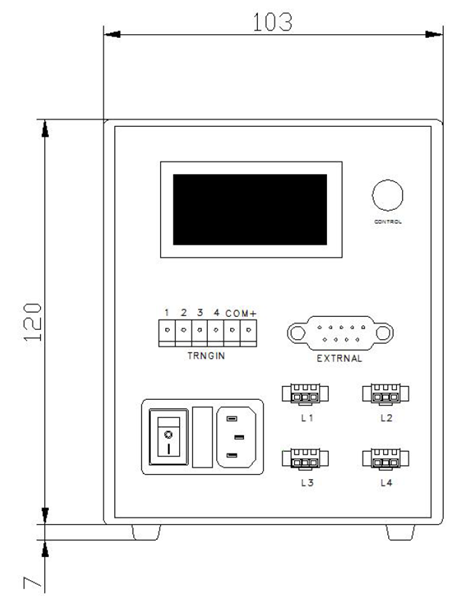

Shell Dimension | 96*120*88 mm | |
Surfacing | Spray-paint |
