Information |
||
---|---|---|
PD No. | CP-0823 | |
PD Line | LT3 Series |
Input Features |
||
---|---|---|
Drive Mode | Constant voltage | |
Dimming Mode | Pulse width modulation | |
Input Voltage | AC100-240V 50/60Hz |
Output Features |
||
---|---|---|
Number of Channels | 4 | |
Output Voltage | 48V | |
Max Output Current | 10A (instantaneous value) | |
Total Power | 120W | |

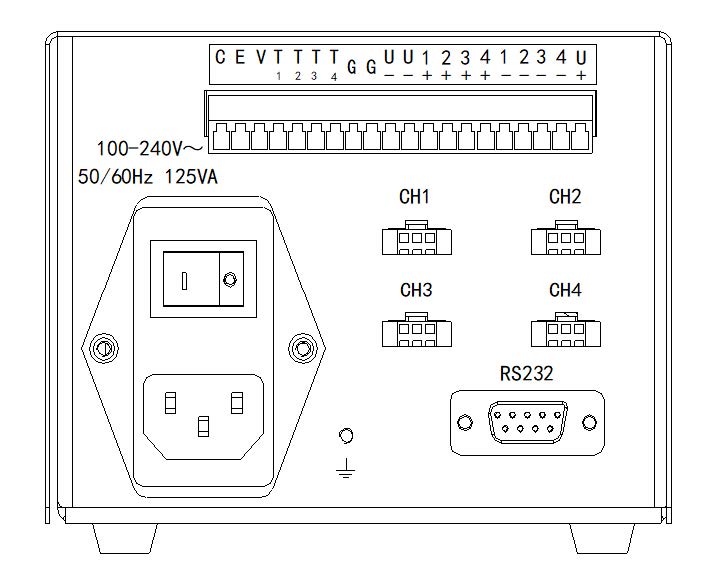

Output Ports | SMP-03V-BC(1:Output+ 2:NC 3:Output-) | |
External Voltage | 12V~24V(the current is about 10mA) |
Trigger Features |
||
---|---|---|
Trigger Delay | <10us |
Environment |
||
---|---|---|
Operating temperature and humidity | Temperature:0~40℃; Humidity:20~85%RH (non-condensation) | |
Storage temperature and humidity | Temperature:-20~60℃;Humidity:20~85%RH (non-condensation) |
Others |
||
---|---|---|
Telecommunication | RS232 | |
Cooling Mode | Forced cooling |
