Information |
||
|---|---|---|
| PD No. | VT-SM2-2432DL-M16 | |
| PD Line | LEO SM2 Series | |
Tools |
||
|---|---|---|
| Vision Tool | Existence、Count、Location、Measurement、Logic、Recognition、Defect detection、Deep learning | |
| Solution Capacity | Supports importing and exporting project, up to 32 projects can be stored. | |
| Communication Protocol | RS-232、TCP、UDP、FTP、Modbus、MELSEC/SLMP、FINS、Keyence KV | |
Sensor |
||
|---|---|---|
| Sensor Type | CMOS | |
| Sensor Size | 1/1.45" | |
| Shutter | Global Shutter | |
| Resolution | 2432 px x 2048 px | |
| Pixel size | 3.45 μm x 3.45 μm | |
| Frame Rate | 40 fps | |
| Mono/Color | Mono | |
| Image Format | Mono 8 | |
| Dynamic Range | 77.8 dB | |
| Exposure Time | 6 μs ~ 1 sec | |
Camera Data |
||
|---|---|---|
| Ethernet | Fast Ethernet（100Mbit/s） | |
| Digital I/O |
Supports triggering device via pressing top trigger button, 12-pin M12 connector provides power and I/O, including opto-isolated input (LINE 0/1/2) × 3, opto-isolated output (LINE 3/4/5) × 3, and RS-232 × 1 |
|
| Power Consumption | 24 VDC / 6.5W | |
Design |
||
|---|---|---|

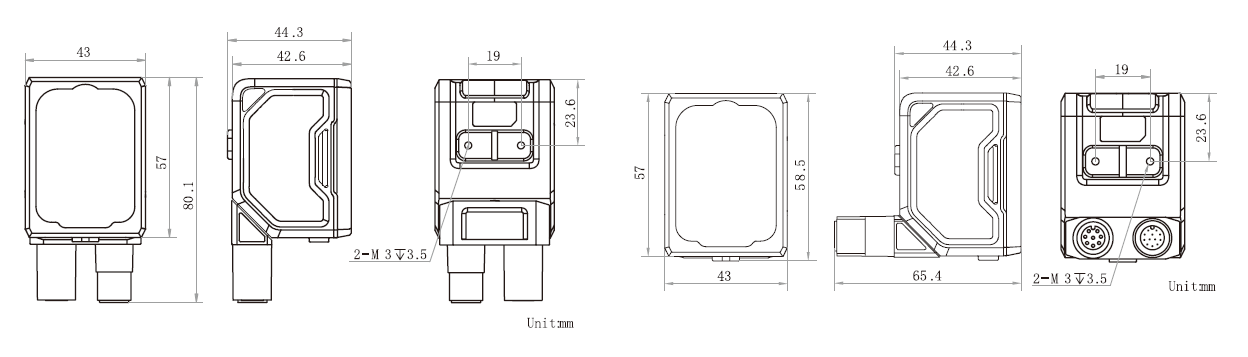

| Dimension(L x W x H) |
Straight angle: 80.1 mm × 43 mm × 44.3 mm Right angle: 58.5 mm × 43 mm × 65.4 mm |
|
| Lens Mount | M12-Mount | |
| Focal Length | 16mm | |
| Lens Cap | Polarized + diffused + full-transparent lens cap | |
| Light Source | White spot light source. Red/blue/IR point light source is optional | |
| Temperature | 0- 50°C（Working），-30- 70°C（Storage） | |
| Weight | 190g | |
Software Environment |
||
|---|---|---|
| Driver , SDK | LEO SM Series Camera Secondary Development Kit（SM-Datum） | |
| Operating System | Windows | |
