BTL-1.0X-162-24K
1. Support 16K 5μ/24K 3.5μ camera;
2. Excellent resolution for high pixel cameras;
3. Low distortion, good telecentricity, big aperture and big depth of field for high end application.
Inquire now
Product Description

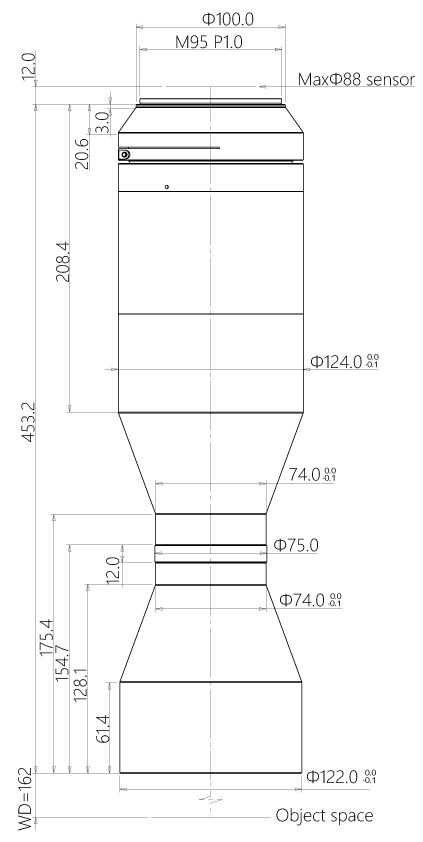

Technical Drawing

Information

PD No. CP-0704
PD Line BTL Series
Type Bi-Telecentric Lenses

Lens Data

FOV 62 Φmm
Mag.(x) 1.419x
WD 123±3 mm
Max. Sesnor Size 88 mm
F/# F7.0
MTF >115lp/mm
D.O.F ±0.1@F7.0
Distortion <0.1%
Telecentricity <0.1°
I/O 601±3 mm

Design

Lens Mount M95
Length 466.3 mm
Temperature -10 - 50°C(Operating),-20 - 60°C(Storage)
Weight 5.5 Kg
Variable Iris No
Coaxial Light No

Field of View(mmxmm)

KAI-47051 (48.7x29.0) 45.3x38.3
Linescan-12K 5μm (81.9mm) 57.7
Linescan-16K 3.5/3.53μm(86.0mm) 60.6

-->
