BTL-0.96X-150-24K
1. Support 16K 5μ/24K 3.5μ camera;
2. Excellent resolution for high pixel cameras;
3. Low distortion, good telecentricity, big aperture and big depth of field for high end application.
Inquire now
Product Description

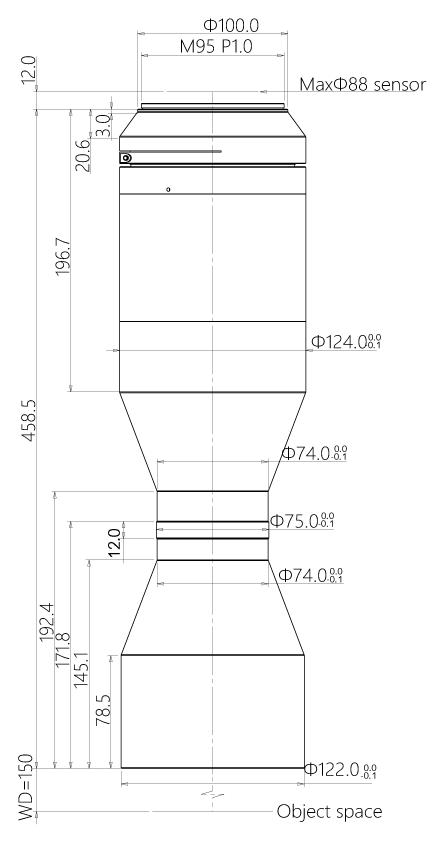

Technical Drawing

Information

PD No. CP-0704
PD Line BTL Series
Type Bi-Telecentric Lenses

Lens Data

FOV 91.6 Φmm
Mag.(x) 0.960x
WD 150±3 mm
Max. Sesnor Size 88 mm
F/# F8.0
MTF >90lp/mm
D.O.F ±0.3@F8.0
Distortion <0.1%
Telecentricity <0.1°
I/O 621±3 mm

Design

Lens Mount M95
Length 458.5 mm
Temperature -10 - 50°C(Operating),-20 - 60°C(Storage)
Weight 6.0 Kg
Variable Iris No
Coaxial Light No

Field of View(mmxmm)

DALSA 86M (64.32x48.38) 67.0x50.4
Linescan-16K 5um (81.9mm) 85.3
Linescan-24K 3.5um (86.0mm) 89.6

-->
