Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 75 Φmm | |
| Mag.(x) | 1.173x | |
| WD | 152±3 mm | |
| Max. Sesnor Size | 88 mm | |
| F/# | F7.0 | |
| MTF | >100lp/mm | |
| D.O.F | ±0.2@F7.0 | |
| Distortion | <0.01% | |
| Telecentricity | <0.1° | |
| I/O | 650±3 mm | |

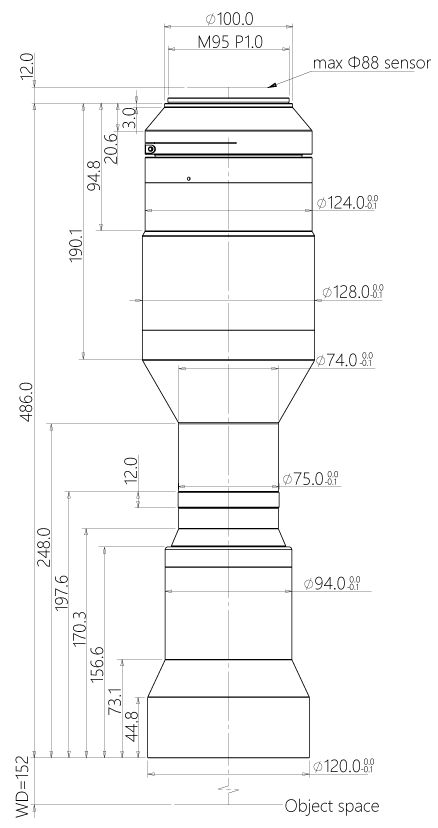

Design |
||
|---|---|---|
| Lens Mount | M95 | |
| Length | 486.0 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | - | |
| Variable Iris | No | |
| Coaxial Light | No | |
Field of View(mmxmm) |
||
|---|---|---|
| KAI-47051 (48.7x29.0) | 54.8x46.4 | |
| Linescan-12K 5μm (81.9mm) | 69.8 | |
| Linescan-24K 3.5μm (86.0mm) | 73.3 | |
