Information |
||
|---|---|---|
| PD No. | BTLM-0.1536X-220-21 | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 215 Φmm | |
| Mag.(x) | 0.1536x | |
| WD | 220±3 mm | |
| Max. Sesnor Size | 33(2") Φmm | |
| F/# | F10.0 | |
| MTF | >90lp/mm | |
| D.O.F | ±13.6@F8 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 601±3 mm | |

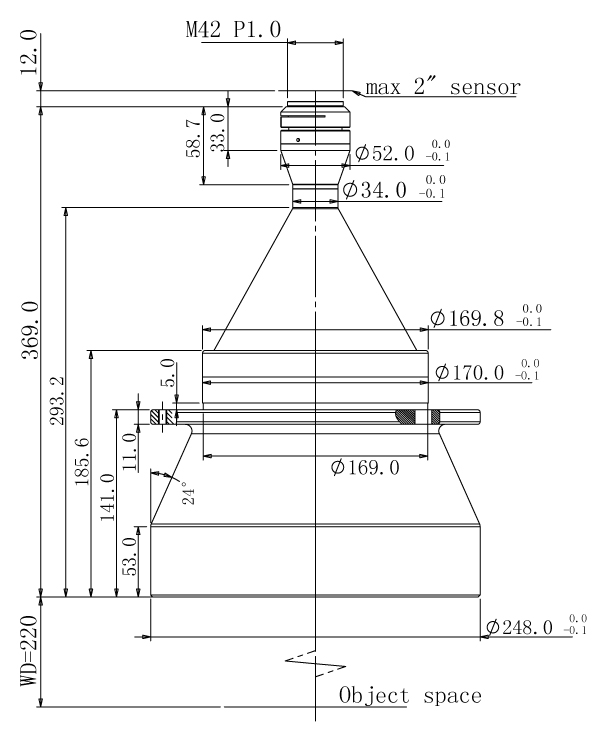

Design |
||
|---|---|---|
| Lens Mount | M42 | |
| Length | 369 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 8.7 Kg | |
| Variable Iris | No | |
| Coaxial Light | No | |
Field of View(mmxmm) |
||
|---|---|---|
| 2" DALSA 12M(24.58x18.43) | 160.0x120.0 | |
| 2" PYTHON 25K(23.04x23.04) | 150.0x150.0 | |
