Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 82 Φmm | |
| Mag.(x) | 0.530x | |
| WD | 338±5 mm | |
| Max. Sesnor Size | 43.4 mm | |
| F/# | F10.0 | |
| MTF | >92lp/mm | |
| D.O.F | ±1.4@F10 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 814±5 mm | |

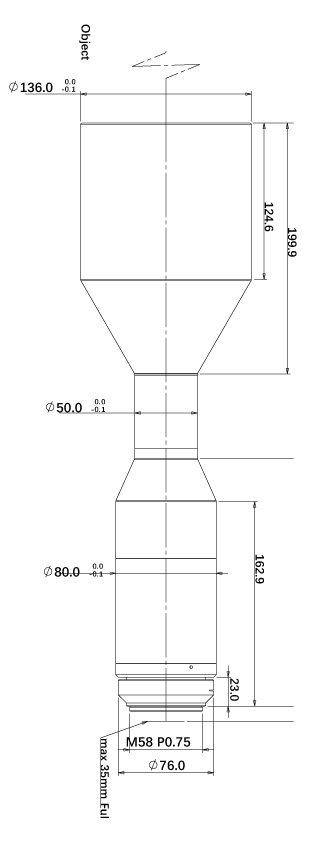

Design |
||
|---|---|---|
| Lens Mount | M58 | |
| Length | 464.4 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 3.8 Kg | |
| Variable Iris | No | |
| Coaxial Light | No | |
Field of View(mmxmm) |
||
|---|---|---|
| CMV50000 (36.43x27.62) | 68.7x52.1 | |
| KAI29050/2 (36.17x24.11) | 68.2x45.5 | |
| KAI43142 (36.18x24.12) | 68.3x45.5 | |
