BTLM-2X-63D-H1.2
1. Support up to 8.0MP cameras;
2. Zero perspective error over the entire Field of View;
3. Large depth of field and constant magnification over defined depth of field;
4. Customization available with best performance/cost rate;
5. Equipped with a Manual Iris for adjusting the Depth of Field.
Inquire now
Product Description

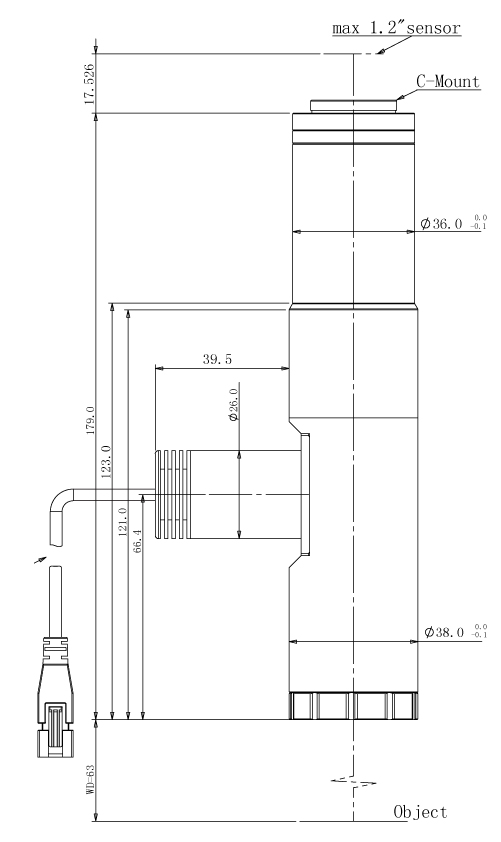

Technical Drawing

Information

PD No. CP-0704
PD Line BTL Series
Type Bi-Telecentric Lenses

Lens Data

FOV 10 Φmm
Mag.(x) 2.0x
WD 63±1 mm
Max. Sesnor Size 20(1.2") Φmm
F/# F6.6
MTF >142lp/mm
D.O.F ±0.07@F6.6
Distortion <0.2%
Telecentricity <0.1°
I/O 260±1 mm

Design

Lens Mount C-mount
Length 179.0 mm
Temperature -10 - 50°C(Operating),-20 - 60°C(Storage)
Weight 0.1 Kg
Variable Iris No
Coaxial Light Yes

Field of View(mmxmm)

1.2" IMX530/540(14.6X12.6) 7.3x6.3

-->
