Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | BTL Series | |
| Type | Bi-Telecenteic Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 190 Φmm | |
| Mag.(x) | 0.311x | |
| WD | 330±5 mm | |
| MAX. Sesnor Size | 59 Φmm | |
| Field of View |
KAI-47051(48.7*29.0) 156.6x93.3 mm 16Kx3.5/3.53um(57.4mm) 184.6 mm 8Kx7um/7.04um(57.4mm) 184.6 mm |
|
| F/# | F13.9 | |
| MTF | >65lp/mm | |
| D.O.F | ±8.2mm@F20 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 913±5 mm | |

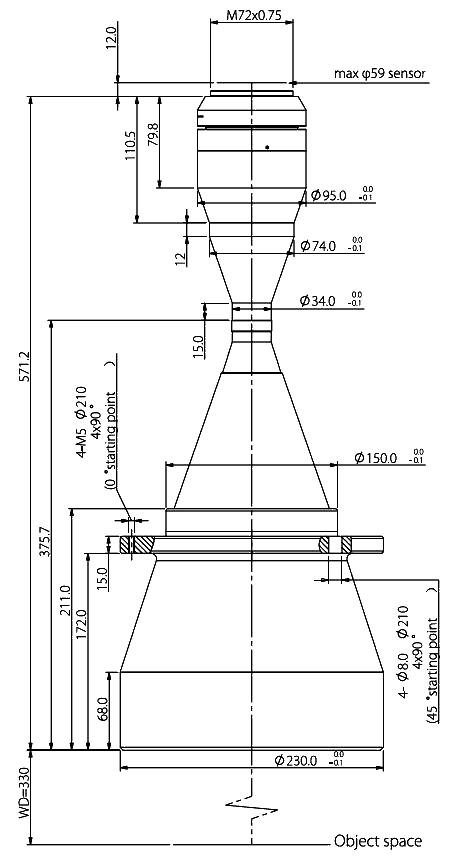

Design |
||
|---|---|---|
| Lens Mount | M72 | |
| Length | 571.2 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 11.1 Kg | |
