Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | BTL Series | |
| Type | Bi-Telecenteic Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 150 Φmm | |
| Mag.(x) | 0.393x | |
| WD | 300±5 mm | |
| MAX. Sesnor Size | 59 Φmm | |
| Field of View |
KAI-47051(48.7*29.0) 123.9x73.8 mm 16Kx3.5/3.53um(57.4mm) 146.1 mm 8Kx7um/7.04um(57.4mm) 146.1 mm |
|
| F/# | F19.8 | |
| MTF | >45lp/mm | |
| D.O.F | ±5.1mm@F20 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 794±5 mm | |

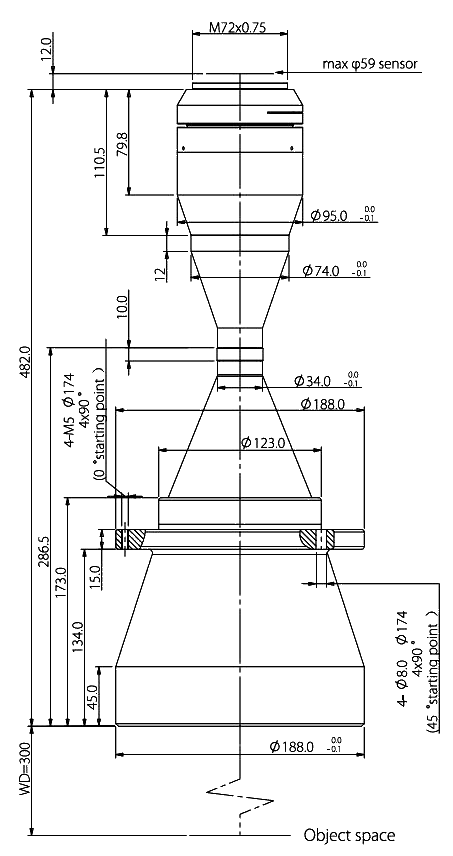

Design |
||
|---|---|---|
| Lens Mount | M72 | |
| Length | 482.0 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 7.1 Kg | |
