Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 190 Φmm | |
| Mag.(x) | 0.229x | |
| WD | 330±5 mm | |
| Max. Sesnor Size | 43.6 Φmm (Full frame 35mm) | |
| Field of View |
Line-2K(20.48mm) 89.0 mm Line-4K(28.67mm) 124.7 mm Line-8K(40.96mm) 178.1 mm 35mm (36.0*24.0) 156.5x104.4 mm |
|
| F/# | F6 | |
| MTF | >135lp/mm | |
| D.O.F | ±8.4 mm@F11 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 880±5 mm | |

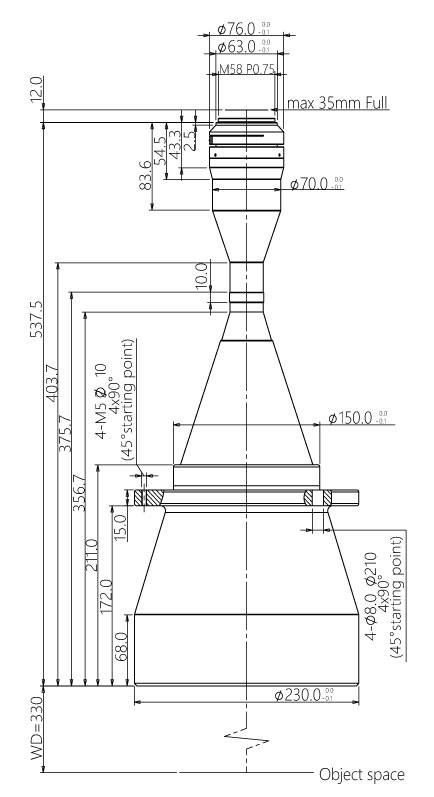

Design |
||
|---|---|---|
| Lens Mount | F-mount | |
| Length | 537.5 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 10.6 Kg | |
