Information |
||
|---|---|---|
| PD No. | BTL-0.291X-300-FF(LM) | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 150 Φmm | |
| Mag.(x) | 0.291x | |
| WD | 300±5 mm | |
| Max. Sesnor Size | 44 Φmm (Full frame 35mm) | |
| Field of View |
Line-2K(20.48mm) 69.9 mm Line-4K(28.67mm) 97.9 mm Line-8K(40.96mm) 139.8 mm 35mm (36.0*24.0) 122.9x81.9 mm |
|
| F/# | F14.6 | |
| MTF | >60lp/mm | |
| D.O.F | ±9.4 mm@F20 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 760±5 mm | |

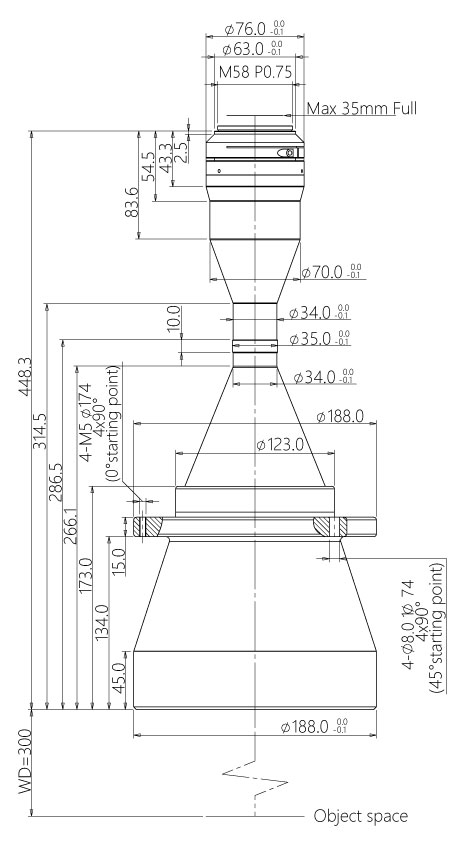

Design |
||
|---|---|---|
| Lens Mount | F-mount | |
| Length | 448.3 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 6.4 Kg | |
