Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 240 Φmm | |
| Mag.(x) | 0.182x | |
| WD | 410±6 mm | |
| Max. Sesnor Size | 44 Φmm (Full frame 35mm) | |
| Field of View |
Line-2K(20.48mm) 111.9 mm Line-4K(28.67mm) 156.7 mm Line-8K(40.96mm) 223.8 mm 35mm (36.0*24.0) 196.7x131.2 mm |
|
| F/# | F6.0 | |
| MTF | >130lp/mm | |
| D.O.F | ±13.3 mm@F11 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 1101±6 mm | |

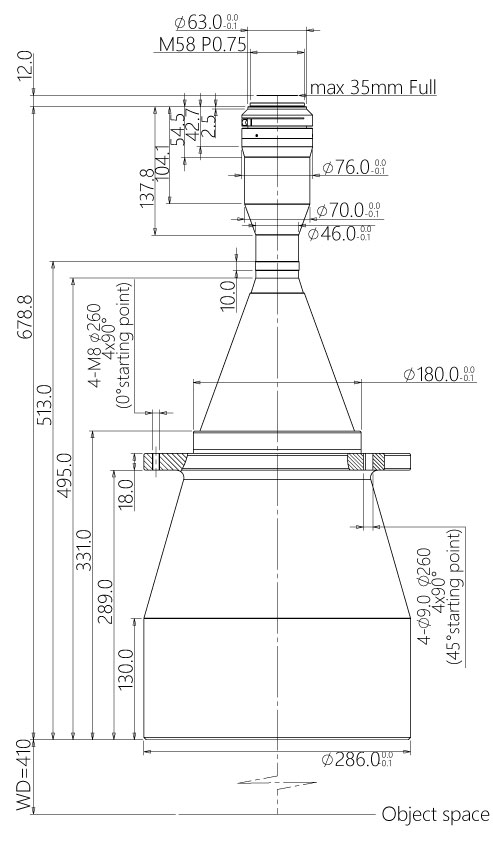

Design |
||
|---|---|---|
| Lens Mount | F-mount | |
| Length | 678.8 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 20.0 Kg | |
