VT-LEM1616CE-H1
VT-LEM industrial lens is a high-performance and cost-effective product designed and manufactured by machine vision based on multi-year market application feedback, professional optical lens assembly and coating process, advanced optical structure, and performance and quality similar to foreign products. Comparable, the entire series reaches 5 million optical points.
Inquire now
Product Description

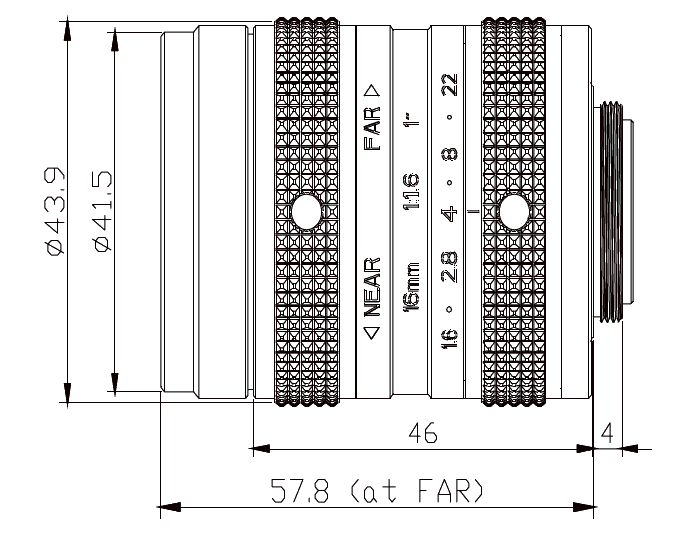

Technical Drawing
Documents & Downloads

General Information

PD No. CP-0686
PD Line CE Series
Type

Standard FA Lens


Optical Specifications

Resolution 5 Mega Pixels
Image Size 1" CCD/CMOS
Focal length 16.0 mm
Aperture, F/# F1.6
Flange Back 17.526 mm
Back Focus 12.17 mm
M.O.D 1 m
FOV(D×H×V)

D:54.3°

H:44.2°

V:33.5°

TV Distortion -3.73%@y=8mm
TTL 75.326 mm
Relative Illumination NA
Focus Range NA
Iris Manual
Focus Manual
Max Chief Ray Angle NA
Coating Wavelength 400-1100 nm

Mechanical Parameters

Mount C-mount
Filter Size M37.5× 0.5
Built-in ir-cut NA
Front/Rear Effective Dia. NA
Dimension Φ43.9 × 57.8 mm
Temperature Range -10- 50°C(Working),-20- 60°C(Storage)
Weight 202 g

Standard FA industrial lens


-->
