General Information: |
||
|---|---|---|
| Model Number | CP-0443 | |
| Series | CB Series | |
| Type | Standard FA Lens | |
|
|
||
|---|---|---|
| Resolution | 8 Mega Pixels | |
| Image Size | 2/3" CCD/CMOS | |
| Focal length | 35.0 mm | |
| Aperture, F/# | F1.4 | |
| Flange Back | 17.526mm | |
| Back Focus | 8.7mm | |
| M.O.D | 0.2 m | |
|
FOV(D×H×V) |
D:17.3° H:13.9° V:10.4° |
|
| TV Distortion | 0.8% | |
| TTL | 61.226±3 mm | |
| Relative Illumination | NA | |
| Focus Range | NA | |
| Iris | Manual | |
| Focus | Manual | |
| Max Chief Ray Angle | NA | |
| Coating Wavelength | 400-950 nm | |
|
|
||
|---|---|---|
| Mount | C-mount | |
| Filter Size | M37× 0.5 | |
| Built-in ir-cut | NA | |
| Front/Rear Effective Dia. |
Front: Φ24.8; Rear: Φ13.6mm |
|

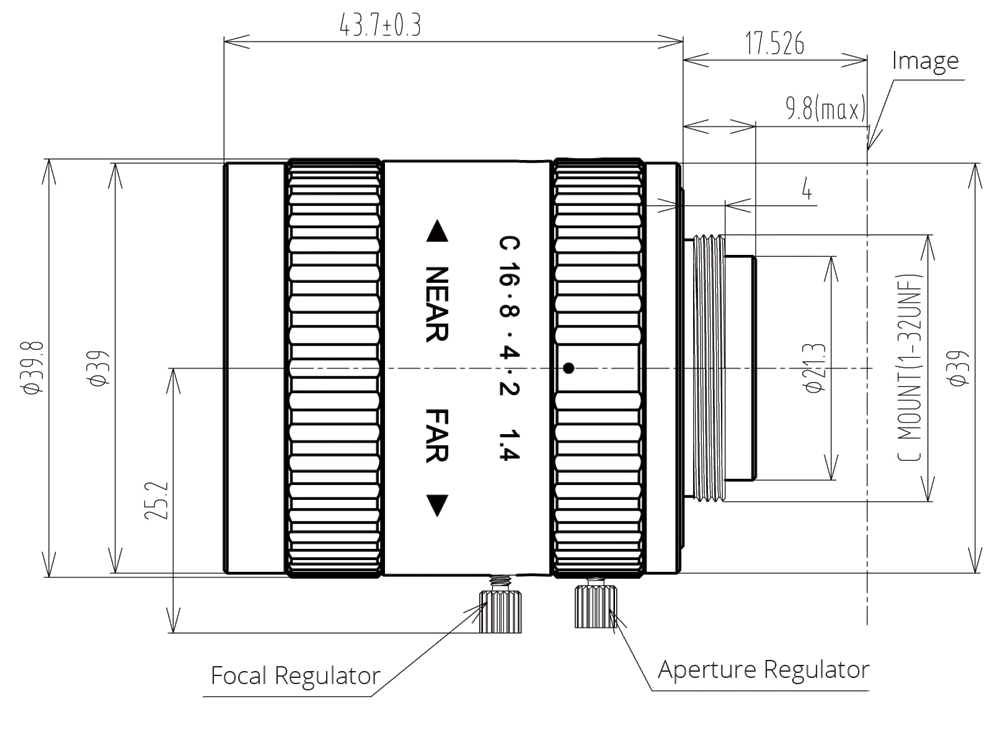

| Dimension | Φ39.8x43.7 ±0.3mm | |
| Temperature Range | -10- 50°C（Working），-20- 60°C（Storage） | |
| Weight | NA | |
