General Information: |
||
---|---|---|
Model Number | CP-0614 | |
Series | CB Series | |
Type | Standard FA Lens |
|
||
---|---|---|
Resolution | 8 Mega Pixels | |
Image Size | 2/3" CCD/CMOS | |
Focal length | 16.0 mm | |
Aperture, F/# | F1.4 | |
Flange Back | 17.526mm | |
Back Focus | 12.7mm | |
M.O.D | 0.3 m | |
FOV(D×H×V) |
D:13.04° H:10.46° V:7.86°
|
|
TV Distortion | <0.8% | |
TTL | 74.526mm | |
Relative Illumination | NA | |
Focus Range | NA | |
Iris | Manual | |
Focus | Manual | |
Max Chief Ray Angle | NA | |
Coating Wavelength | 400-1100 nm |
|
||
---|---|---|
Mount | C-mount | |
Filter Size | M37× 0.5 | |
Built-in ir-cut | NA | |
Front/Rear Effective Dia. |
Front: Φ24; Rear: Φ11.78 |
|

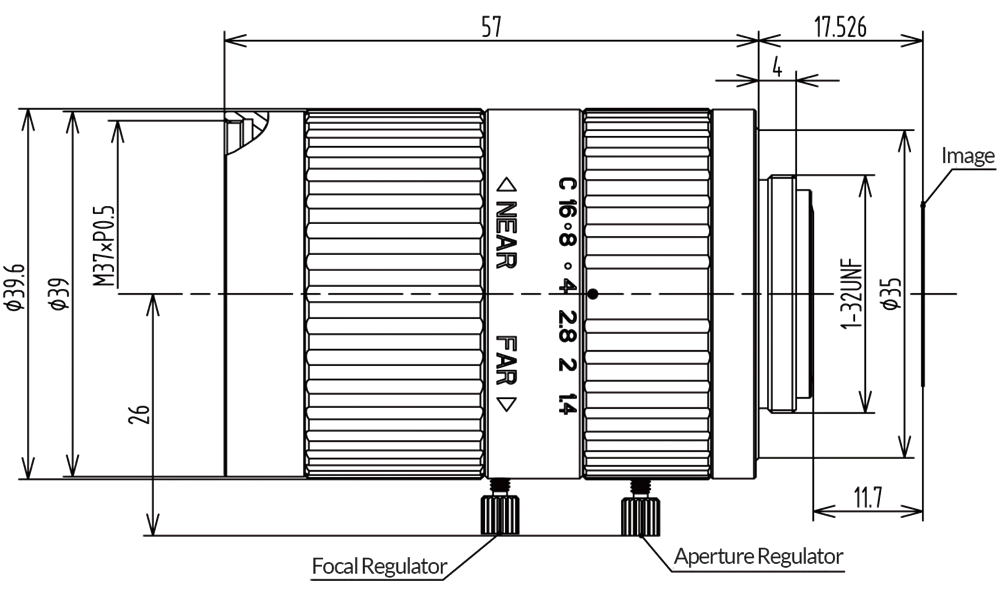

Dimension | Φ39.6x57mm | |
Temperature Range | -10- 50°C(Working),-20- 60°C(Storage) | |
Weight | NA |
