VT-LEM0814CBMP9-H1
VT-LEM industrial lens is a high-performance and cost-effective product designed and manufactured by machine vision based on multi-year market application feedback, professional optical lens assembly and coating process, advanced optical structure, and performance and quality similar to foreign products. Comparable, the entire series reaches 5 million optical points.
Inquire now
Product Description
Product parameters
Product Specifications

General Information:

Model Number CP-1836
Series CB Series
Type Standard FA Lens


Optical Specifications

Resolution 9 Mega Pixels
Image Size 1" CCD/CMOS
Focal length 8.0 mm
Aperture, F/# F1.4
Flange Back 17.526mm
Back Focus 10.35mm
M.O.D 0.1 m
FOV(D×H×V)

D:89.5°

H:77.1°

V:61.8°

TV Distortion <0.1%
TTL 95.526mm
Relative Illumination NA
Focus Range NA
Iris Manual
Focus Manual
Max. Incident Angle NA
Coating Wavelength 400-1100 nm


Mechanical Parameters:

Mount C-mount
Filter Size NA
Built-in ir-cut NA
Front/Rear Effective Dia. Front: Φ40.25 mm / Rear: Φ17.32 mm

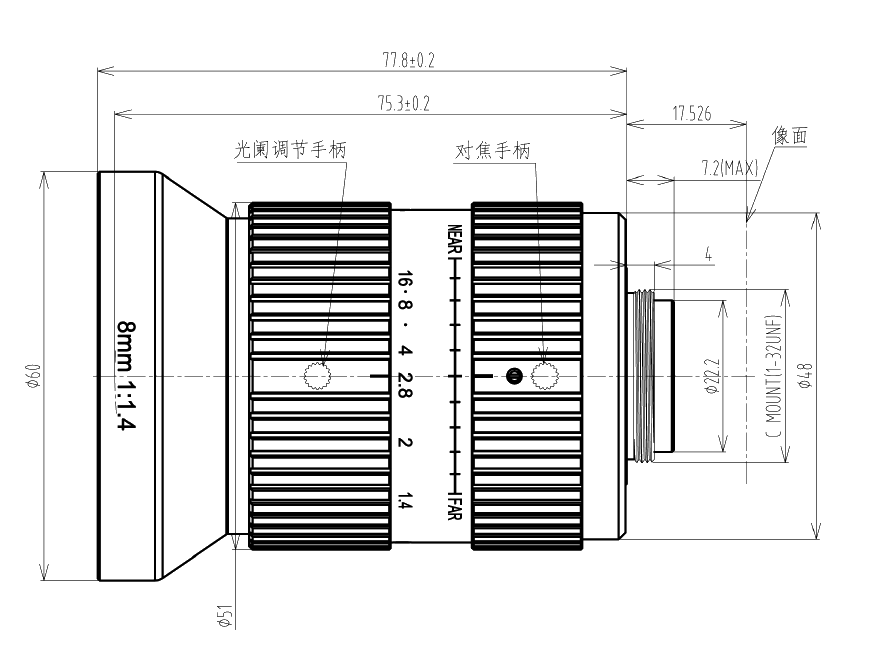

Dimension Φ60 × 77.8±0.2 mm
Temperature Range -10- 50°C(Working),-20- 60°C(Storage)
Weight NA

Standard FA industrial lens

-->
