BTL-0.705X-125-16K(LM)

1. Support 16K 3.5μ line scan cameras;
2. Optimized for 1/2.5"~1.1" C-Mount cameras;
3. Largest FOV from 26mm upto 300mm;
4. Excellent resolution for high pixel cameras;
5. Low distortion, good telecentricity, big aperture and big depth of field for high end application.

Inquire now

Shop now

Product Description

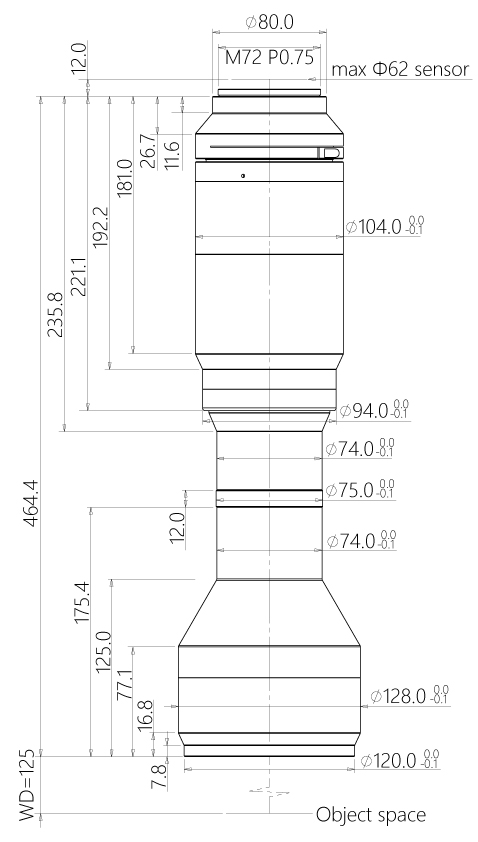

Technical Drawing

Information
	PD No.	CP-0704
	PD Line	BTL Series
	Type	Bi-Telecenteic Lenses

Lens Data
	FOV	88 Φmm
	Mag.(x)	0.705x
	WD	125±3 mm
	MAX. Sesnor Size	62 Φmm
	Field of View	KAI-47051 (48.7x29.0) 69.1x41.1mm Linescan-12K 5um (61.44mm) 87.1mm Linescan-16K 3.5/3.53um (57.4mm) 81.4mm
	F/#	F7.0
	MTF	>165lp/mm
	D.O.F	±0.6@F7.0
	Distortion	<0.1%
	Telecentricity	<0.3°
	I/O	601±3 mm

Design
	Lens Mount	M72
	Length	464.4 mm
	Temperature	-10 - 50°C（Operating），-20 - 60°C（Storage）
	Weight	5.2 Kg
