BTL-0.853X-125-16K(LM)

1. Support 16K 3.5μ line scan cameras;
2. Optimized for 1/2.5"~1.1" C-Mount cameras;
3. Largest FOV from 26mm upto 300mm;
4. Excellent resolution for high pixel cameras;
5. Low distortion, good telecentricity, big aperture and big depth of field for high end application.

Inquire now

Shop now

Product Description

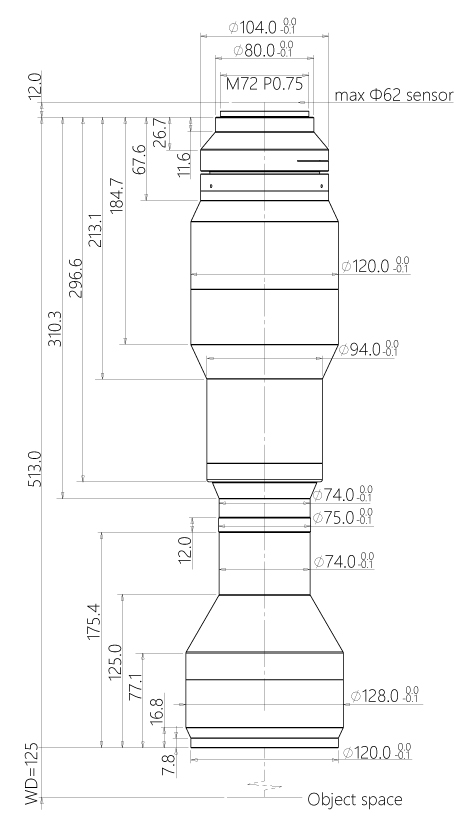

Technical Drawing

Information
	PD No.	BTL-0.853X-125-16K(LM)
	PD Line	BTL Series
	Type	Bi-Telecenteic Lenses

Lens Data
	FOV	72.7 Φmm
	Mag.(x)	0.853x
	WD	125±3 mm
	MAX. Sesnor Size	62 Φmm
	Field of View	KAI-47051 (48.7x29.0) 57.1x34.0 Linescan-12K 5um (61.44mm) 72.0mm Linescan-16K 3.5/3.53um (57.4mm) 67.3mm
	F/#	F6.0
	MTF	>135lp/mm
	D.O.F	±0.3@F6.0
	Distortion	<0.1%
	Telecentricity	<0.3°
	I/O	650±3 mm

Design
	Lens Mount	M72
	Length	513.0 mm
	Temperature	-10 - 50°C（Operating），-20 - 60°C（Storage）
	Weight	5.7 Kg
