Information |
||
|---|---|---|
| PD No. | BTLM-4X-45-H1.2 (IA) | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 5 Φmm | |
| Mag.(x) | 4.0x | |
| WD | 45±1 mm | |
| Max. Sesnor Size | 20(1.2") Φmm | |
| F/# | F11.7 | |
| MTF | >73lp/mm | |
| D.O.F | ±0.03@F11.7 | |
| Distortion | <0.08% | |
| Telecentricity | <0.1° | |
| I/O | 243±1 mm | |

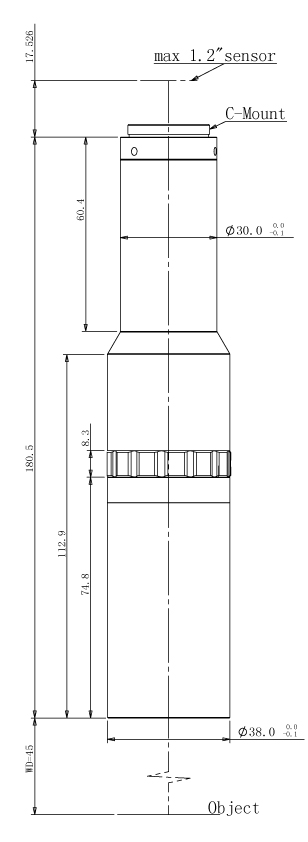

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| Length | 180.5 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 0.1 Kg | |
| Variable Iris | Yes | |
| Coaxial Light | No | |
Field of View(mmxmm) |
||
|---|---|---|
| 1.2" IMX530/540(14.6X12.6) | 3.65x3.15 | |
