Information |
||
|---|---|---|
| PD No. | LEO2 4096G-L28GM(TDI) | |
| PD Line | LEO Series | |
Sensor |
||
|---|---|---|
| Sensor Vendor | / | |
| Sensor Type | CMOS | |
| Resolution | 4096 px x 2 px | |
| Pixel size | 7 μm | |
| Line Rate |
28 kHz@Mono 8 14 kHz@ Mono 10/12 HB: 80 kHz@Mono 8/10/12 |
|
| Mono/Color | Mono | |
| Image Format | Mono 8/10/12 | |
EMVA Data |
||
|---|---|---|
| Signal-to-Noise Ratio (typical) | 40.0 dB | |
| Dynamic range (typical) | 65.6 dB | |
| Exposure Time | 5μs~10ms | |
Camera Data |
||
|---|---|---|
| Interface | GigE(1000 Mbit/s) | |
| Pixel Bit Depth | 8 / 10 / 12 bits | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O | 12-pin Hirose connector provides I/O:Configurable output and input × 4,supports single-end/differential | |
| Power Supply | Via 12-pin Hirose,DC12V PoE Power Supply. | |
Design |
||
|---|---|---|

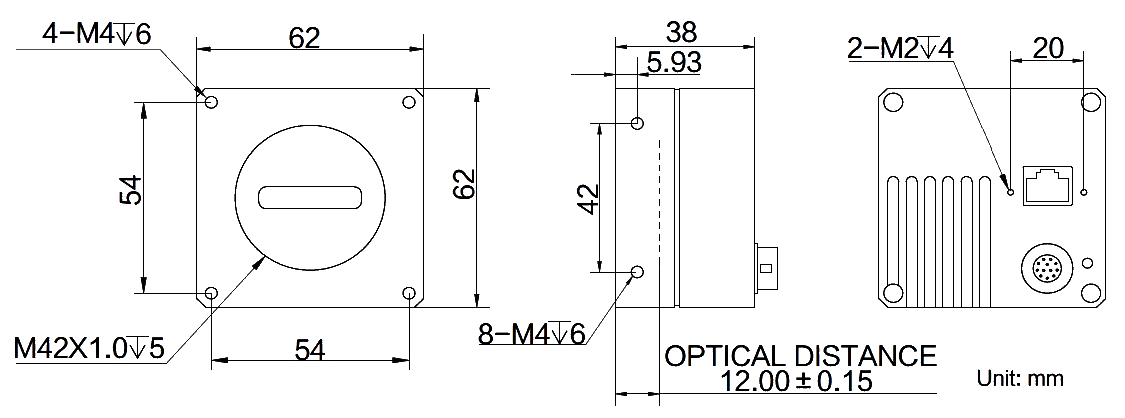

| Dimension(L x W x H) | 62.0 mm × 62.0 mm × 41.0 mm | |
| Lens Mount | M42(FBL 12) | |
| Operating Temperature | -20- 56°C（Working），-30- 80°C（Storage） | |
| Weight | 280g | |
Software Environment |
||
|---|---|---|
| Driver&SDK | LEO Series Camera Software Suite or 3rd party GigE Vision Software | |
| Operating System | Windows，Linux | |
| Conformity | GigE Vision , GenICam | |
