LEO 2048-L56GM
1、With GigE interface, the data transmission distance up to 100 meters without any relay device.
2、Supports auto and manual gain, gamma correction, exposure time, LUT, brightness and other ISP functions.
3、Supports white balance algorithm, color conversion matrix, hue, saturation and etc,for color camera.
4、Supports various output formats for image data and supports ROI, binning, mirror and etc.
5、Conforms to GigE Vision V2.0 protocol and GenICam standard;
Inquire now
Product Description

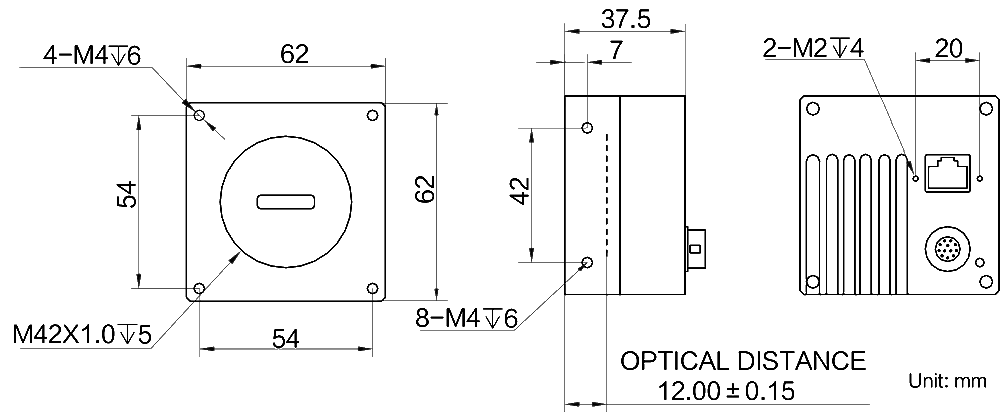

Technical Drawing
Documents & Downloads

Information

PD No. CP-1921
PD Line LEO Series

Sensor

Sensor Vendor /
Shutter Rolling Shutter
Sensor Type CMOS
Resolution 2048 px x 1 px
Pixel size 7 μm
Line Rate 56 K
Mono/Color Mono
Image Format Mono8/10/10Packed/12/12Packed

EMVA Data

Signal-to-Noise Ratio (typical) 40.0 dB
Dynamic range (typical) 60.0 dB
Exposure Time 2μs~10ms

Camera Data

Interface GigE(1000 Mbit/s)
Pixel Bit Depth 8 / 10 / 12 bits
Synchronization

● Soft Trigger

● Hardware Trigger

● Free Run

I/O 12-pin Hirose connector provides I/O;2 differential inputs, 2 differential outputs,1 bidirectional configurable IO
Power Supply Via 12-pin Hirose,DC12V PoE Power Supply.

Design

Dimension(L x W x H) 62.0 mm × 62.0 mm × 37.5 mm
Lens Mount M42(FBL 12)
Operating Temperature 0- 50°C(Working),-30- 70°C(Storage)
Weight 170g

Software Environment

Driver&SDK LEO Series Camera Software Suite or 3rd party GigE Vision Software
Operating System Windows,Linux
Conformity GigE Vision , GenICam

LEO Series Industrial Cameras SDK iDatum

LEO Series Industrial Cameras User Manual

Product Specification


-->
