Information |
||
|---|---|---|
| PD No. | BTL-0.204X-208-H1.1(LM) | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 90 Φmm | |
| Mag.(x) | 0.204x | |
| WD | 208±3 mm | |
| Max. Sesnor Size | 18.4(1.1") Φmm | |
| Field of View | 1.1" IMX253(14.19*10.38) 69.6x50.9 mm | |
| F/# | F6.2 | |
| MTF | >145lp/mm | |
| D.O.F | ±10.5 mm@F11 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 472±3 mm | |

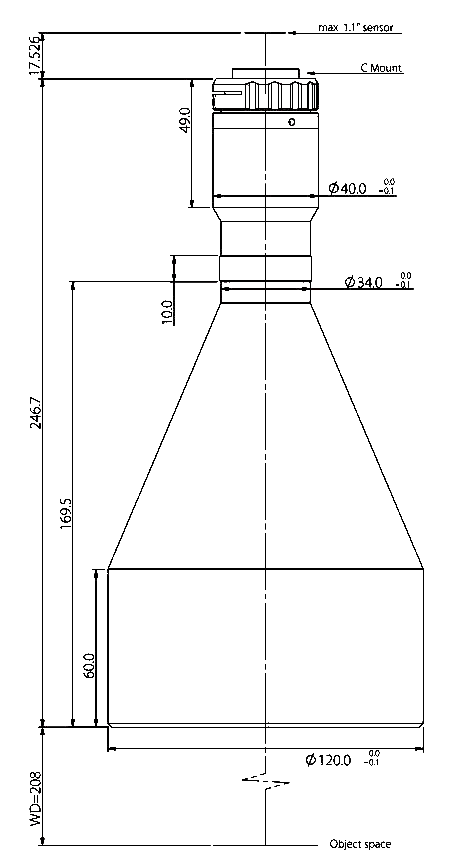

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| Length | 246.7 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 1.8 Kg | |
