Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 90 Φmm | |
| Mag.(x) | 0.184x | |
| WD | 208±3 mm | |
| Max. Sesnor Size | 16.6(1") Φmm | |
| Field of View |
1"KAI-04050(12.85*9.64) 69.8x52.4 mm 1"CMV4000(11.26*11.26) 61.2x61.2 mm 1"ICX674/694/814(12.5*10.0) 67.9x54.4 mm |
|
| F/# | F6.5 | |
| MTF | >135lp/mm | |
| D.O.F | ±18.9 mm@F16 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 461±3 mm | |

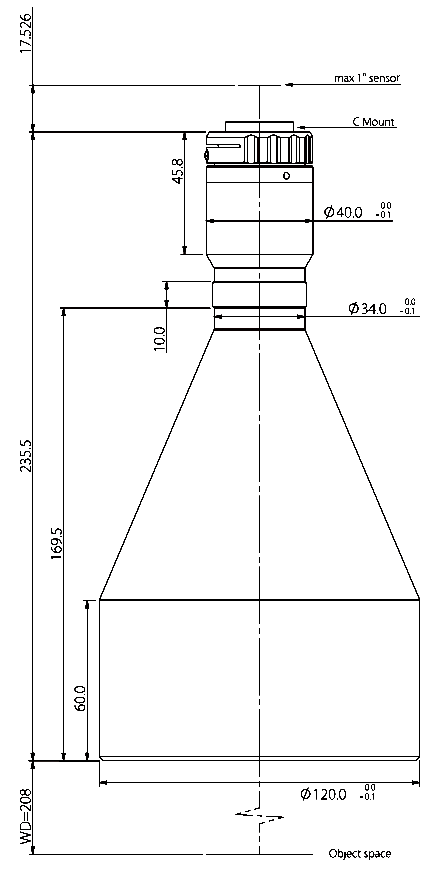

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| Length | 235.5 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 1.8 Kg | |
