Information |
||
|---|---|---|
| PD No. |
CP-1787 |
|
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 80 Φmm | |
| Mag.(x) | 0.208x | |
| WD | 228±4 mm | |
| Max. Sesnor Size | 16.6(1") Φmm | |
| Field of View |
1.1" KAI-04050(12.85x9.64) 62.4x46.8 1.1" CMV4000(11.26x11.26) 54.7x54.7 1.1" ICX674/694/814(12.5x10.0) 60.7x48.5 |
|
| F/# | F6.5 | |
| MTF | >135lp/mm | |
| D.O.F | ±14.8 mm@F16 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 446±4 mm | |

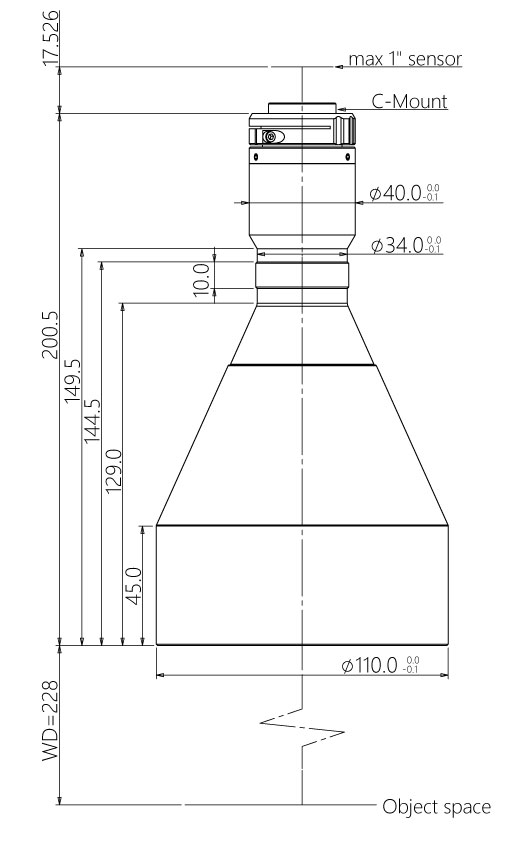

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| Length | 200.5 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 2.0 Kg | |
