General Information |
||
|---|---|---|
| PD No. | CP-0093 | |
| PD Line | M12 Series | |
| Type |
Standard FA Lens
|
|
Optical Specifications |
||
|---|---|---|
| Resolution | 3 Mega Pixels | |
| Image Size | 1/1.8" CCD/CMOS | |
| Focal length | 16.0 mm | |
| Aperture, F/# | F1.8 | |
| Back Focus | 7.21 mm | |
| M.O.D | 0.5 m | |
|
FOV(D×H×V) |
D:27.8° H:22.3° V:16.8° |
|
| TV Distortion | -0.5% | |
| TTL | 23.79 mm | |
| Relative Illumination | >65% | |
| Iris | Fixed | |
| Max Chief Ray Angle | NA | |
| Coating Wavelength |
400-950 nm
|
|
Mechanical Parameters |
||
|---|---|---|
| Mount | S-mount(M12) | |
| Filter Size | NA | |
| Built-in ir-cut | NA | |
| Front/Rear Effective Dia. | Φ10.9 / Φ7.3 | |

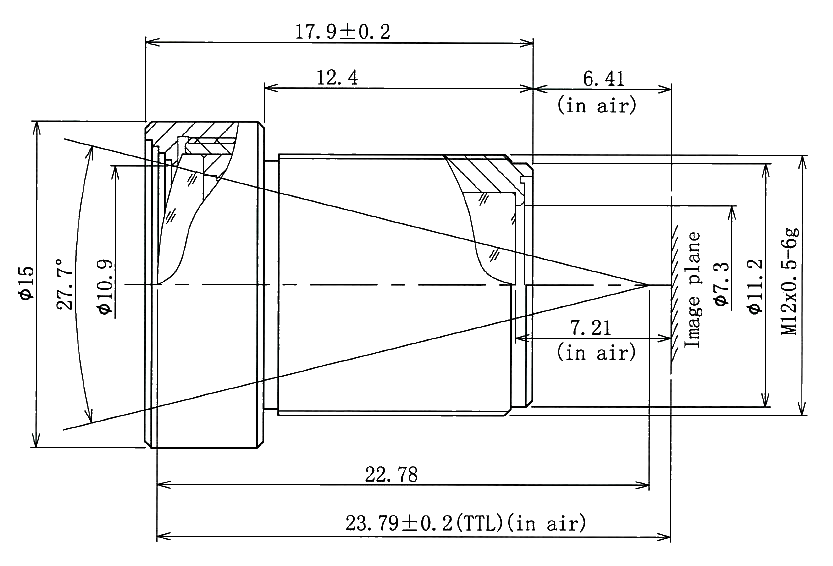

| Dimension | Φ15 × 17.9mm | |
| Temperature Range | -10- 50°C（Working），-20- 60°C（Storage） | |
| Weight | NA | |
