General Information |
||
|---|---|---|
| PD No. | CP-0092 | |
| PD Line | M12 Series | |
| Type |
Standard FA Lens
|
|
Optical Specifications |
||
|---|---|---|
| Resolution | 3 Mega Pixels | |
| Image Size | 1/1.8" CCD/CMOS | |
| Focal length | 12.0 mm | |
| Aperture, F/# | F1.8 | |
| Back Focus | 6.7 mm | |
| M.O.D | 0.2 m | |
|
FOV(D×H×V) |
D:42° H:33.6° V:25.5° |
|
| TV Distortion | NA | |
| TTL | 25.3±0.3 mm | |
| Relative Illumination | NA | |
| Iris | Fixed | |
| Max Chief Ray Angle | NA | |
| Coating Wavelength |
400-950 nm
|
|
Mechanical Parameters |
||
|---|---|---|
| Mount | S-mount(M12) | |
| Filter Size | NA | |
| Built-in ir-cut | NA | |
| Front/Rear Effective Dia. | Φ11.2 / Φ8.4 | |

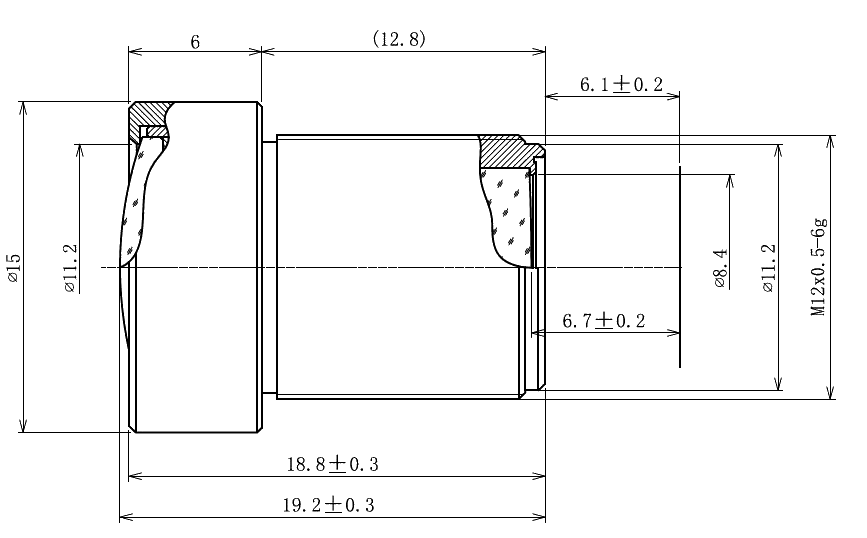

| Dimension | Φ15 × 19.2±0.3 mm | |
| Temperature Range | -10- 50°C（Working），-20- 60°C（Storage） | |
| Weight | NA | |
