VT-LEM1216CBMP8
VT-LEM industrial lens is a high-performance and cost-effective product designed and manufactured by machine vision based on multi-year market application feedback, professional optical lens assembly and coating process, advanced optical structure, and performance and quality similar to foreign products. Comparable, the entire series reaches 5 million optical points.
Inquire now
Product Description
Product parameters
Product Specifications

General Information

PD No. CP-0444
PD Line CB Series
Type Standard FA Lens


Optical Specifications

Resolution 8 Mega Pixels
Image Size 2/3" CCD/CMOS
Focal length 12.0 mm
Aperture, F/# F1.6
Flange Back 17.526 mm
Back Focus 13 mm
M.O.D 0.15 m
FOV(D×H×V)

D:46.6°

H:39°

V:30.3°

TV Distortion <0.8%
TTL 54.026 mm
Relative Illumination NA
Focus Range NA
Iris Manual
Focus Manual
Max Chief Ray Angle NA
Coating Wavelength 400-950 nm

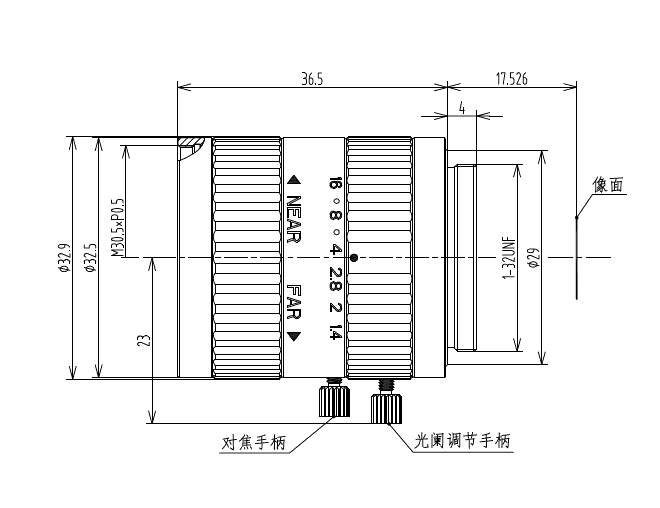

Mechanical Parameters

Mount C-mount
Filter Size M30.5× 0.5
Built-in ir-cut NA
Front/Rear Effective Dia. Front:Φ24 mm / Rear:Φ10 mm
Dimension Φ32.9 × 36.5 mm
Temperature Range -10- 50°C(Working),-20- 60°C(Storage)
Weight NA

Standard FA industrial lens

-->
