General Information: |
||
---|---|---|
Model Number | CP-1175 | |
Series | CB Series | |
Type | Standard FA Lens |
|
||
---|---|---|
Resolution | 5 Mega Pixels | |
Image Size | 1/1.8" CCD/CMOS | |
Focal length | 75.0 mm | |
Aperture, F/# | F2.8-22 | |
Flange Back | 17.526mm | |
Back Focus | 42.2-55.5mm | |
M.O.D | 500mm | |
FOV(D×H×V) |
D:5.4° H:4.04° V:5.84° |
|
TV Distortion | 0.05% | |
TTL | 84.526 mm | |
Relative Illumination | NA | |
Focus Range | NA | |
Iris | Manual | |
Focus | Manual | |
Max. Incident Angle | NA | |
Coating Wavelength | 400-950nm |
|
||
---|---|---|
Mount | C-mount | |
Filter Size | NA | |
Built-in ir-cut | NA | |
Front/Rear Effective Dia. |
Front: Φ24; Rear: Φ14.5mm |
|

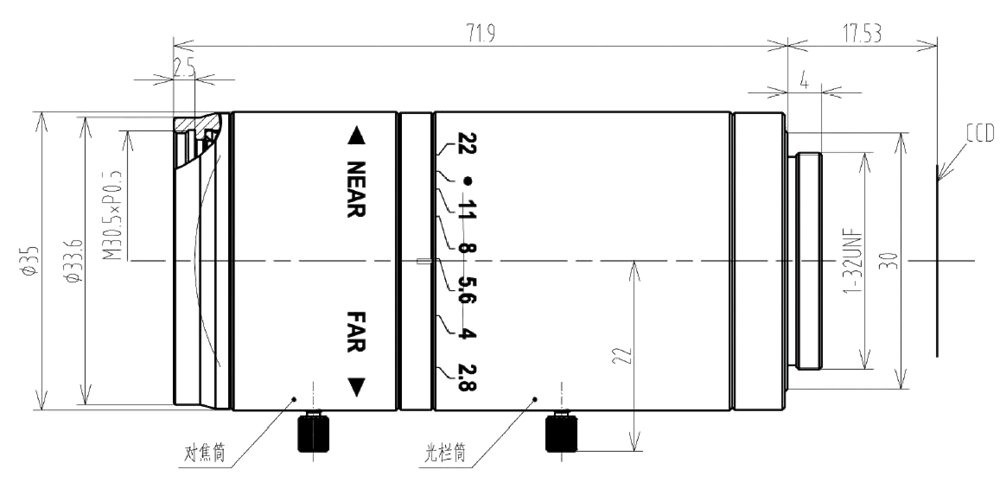

Dimension | Φ35x71.9mm | |
Temperature Range | -10- 50°C(Working),-20- 60°C(Storage) | |
Weight | NA |
