[ RETURN LIST ] HOME>PRODUCTS>INDUSTRIAL LENSES

PRODUCTS

VTL-12K-0.33X

1. Max image circle up to Φ62mm
2. Suitable for 8K/12K resolution camera
3. Standard magnification from 0.33X
4. Big aperture F4.5
5. Ultra-low optical distortion

Inquire now

Product Description

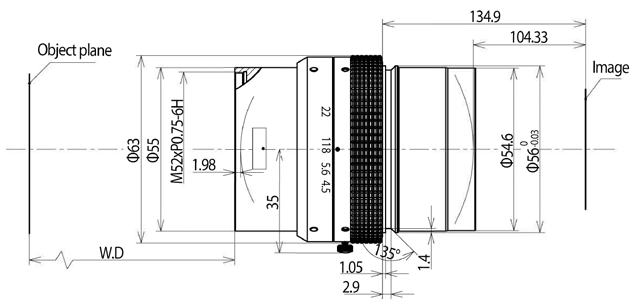

Technical Drawing

General Information
	PD No.	VTL-12K-0.33X
	PD Line	VTL Series

Optical Specifications
	Image Size	Φ62
	Mag.
	FFL	134.9mm
	WD	415.1±5mm
	FOV	29°
	ENP Diameter	Φ23.37
	TV Distortion	<0.005%
	Focus	Manual

Design
	Lens Mount	V(Φ56)
	Filter Size	M52 x P0.75
