Information |
||
|---|---|---|
| PD No. | BTL-1.0X-102-16K(LM) | |
| PD Line | BTL Series | |
| Type | Bi-Telecenteic Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 62 Φmm | |
| Mag.(x) | 1.0x | |
| WD | 102±2 mm | |
| MAX. Sesnor Size | 62 Φmm | |
| Field of View |
I-47051 (48.7x29.0) 78.9x59.8 Linescan-12K 5um (61.44mm) 61.4mm Linescan-16K 3.5/3.53um (57.4mm) 57.4mm |
|
| F/# | F7.0 | |
| MTF | >95lp/mm | |
| D.O.F | ±0.3@F7.0 | |
| Distortion | <0.1% | |
| Telecentricity | <0.62° | |
| I/O | 400±2 mm | |

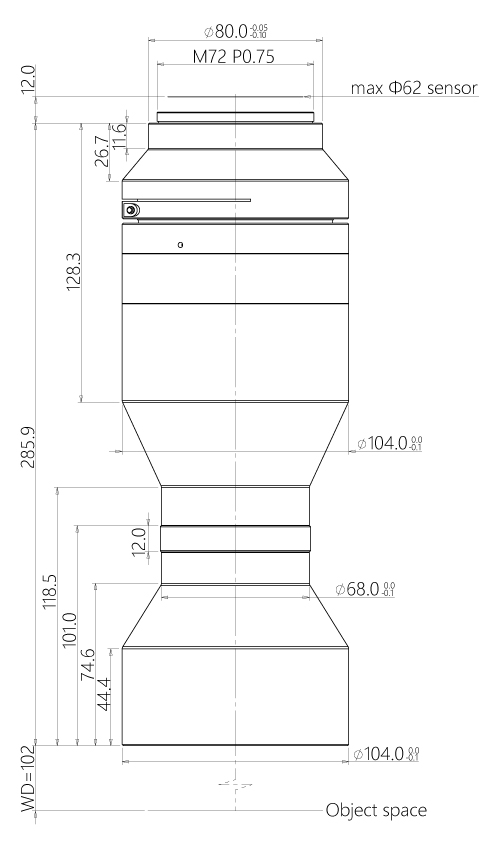

Design |
||
|---|---|---|
| Lens Mount | M72 | |
| Length | 285.9 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 3.1 Kg | |
