Information |
||
|---|---|---|
| PD No. | BTL-1.11X-150-24K | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 79.2 Φmm | |
| Mag.(x) | 1.11x | |
| WD | 150±3 mm | |
| Max. Sesnor Size | 88 mm | |
| F/# | F7.0 | |
| MTF | >100lp/mm | |
| D.O.F | ±0.2@F7.0 | |
| Distortion | <0.01% | |
| Telecentricity | <0.2° | |
| I/O | 641±3 mm | |

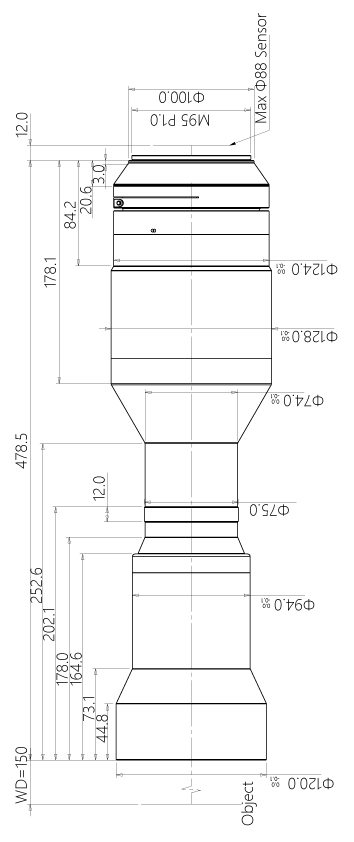

Design |
||
|---|---|---|
| Lens Mount | M95 | |
| Length | 478.5 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 5.6 Kg | |
| Variable Iris | No | |
| Coaxial Light | No | |
Field of View(mmxmm) |
||
|---|---|---|
| DALSA 86M (64.32x48.38) | 57.9x43.6 | |
| Linescan-16K 5um (81.9mm) | 73.8 | |
| Linescan-24K 3.5um (86.0mm) | 77.5 | |
