General Information |
||
|---|---|---|
| PD No. | VT-UVMC-2.0X-65-H1.2 | |
| PD Line | VT-UVMC Series | |
Optical Specifications |
||
|---|---|---|
| Sensor Size | ?20.5 | |
| Mag.(x) | 2.0X | |
| Aperture, F/# | F13.8 | |
| Spectral Region | 190~700nm | |
| Mag.(x) | 2.0X | |
| Flange Back | 17.526mm | |
| WD | 65.0mm | |

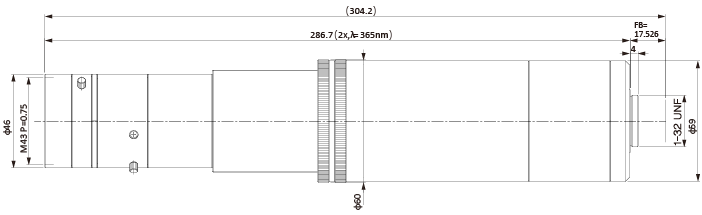

Design |
||
|---|---|---|
| Lens Mount | C-Mount | |
| Filter Size | M43×0.75 | |
| Dimension | Φ59×235 | |
| Weight | 580g | |
