Information |
||
|---|---|---|
| PD No. | iCt-SWG130S-Pro | |
| PD Line | iCt Series | |
Sensor |
||
|---|---|---|
| Sensor Vendor | Sony | |
| Sensor | IMX990 | |
| Shutter | Global | |
| Sensor Size | 1/2" | |
| Sensor Type | CMOS InGaAs | |
| Frame Rate | 91 fps | |
EMVA Data |
||
|---|---|---|
| Dynamic Range(typical) | 52 dB | |
| SNR(typical) | 56 dB | |
Camera Data |
||
|---|---|---|
| Interface | GigE | |
| Pixel Bit Depth | 12bit | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O |
1 input(opto-isolated)， 1 output(opto-isolated), 1 bi-directional custom non-isolated I/O |
|
| Power Supply | PoE, DC9V~24V | |
Design |
||
|---|---|---|
| Design | Compact industrial design | |

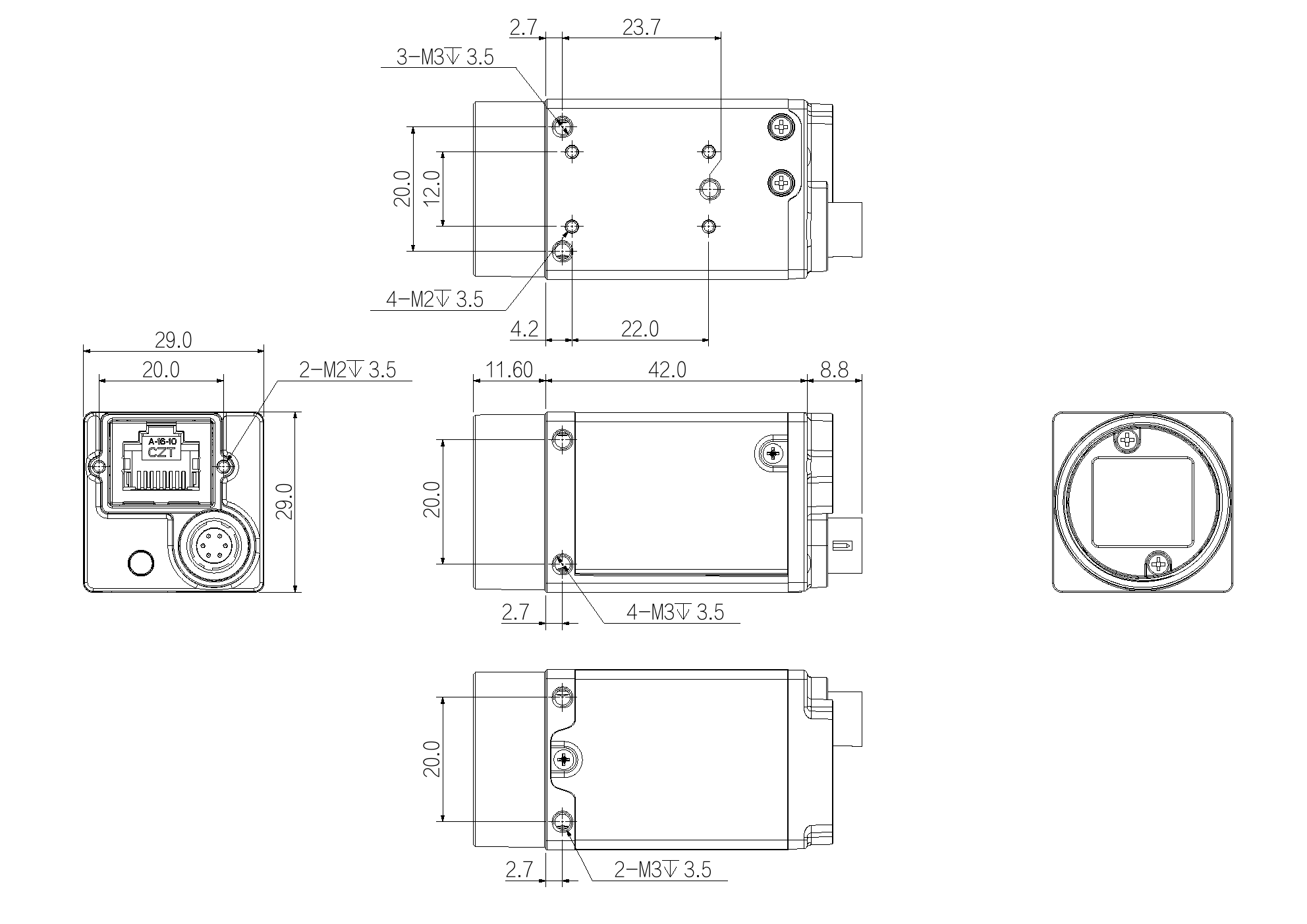

| Dimension | 29mm×29mm×42mm(not including lens mount and rear case connector) | |
| Lens Mount | C-mount | |
| Working Temperature | 0 - 50°C(Operating), -30 - 80°C(Storage) | |
| Weight | 98g | |
Software Environment |
||
|---|---|---|
| Driver, SDK | Mars Series Camera Secondary Development Kit(iCentral)or Third-party Software meeting with GigE Vision Protocol | |
| Operating System | Windows，Linux | |
| Conformity | GigE Vision and GenICam | |
