Information |
||
|---|---|---|
| PD No. | iCap00MOTG8K1SL-M72 | |
| PD Line | iCap Series | |
Sensor |
||
|---|---|---|
| Sensor Vendor | / | |
| Shutter | Global Shutter | |
| Sensor Type | CMOS | |
| Resolution | 8192× 1 | |
| Pixel Size | 7 μm | |
| Line Rate | 200KHz 1Line | |
| Mono/Color | Mono | |
| Image Format | Mono8/Mono12Packed | |
EMVA Data |
||
|---|---|---|
| Dynamic range (typical) | 63.3 dB | |
| Exposure Time | 5μs-40ms | |
Camera Data |
||
|---|---|---|
| Interface | 10G fiber-optic（SPF+） | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O | 12-pin connector provides I/O，1 frame signal input (optically isolated), 2 line signal inputs (AB phase), 4 outputs ( non-opto isolated) | |
| Power Supply | DC 12V- 24V | |
Design |
||
|---|---|---|

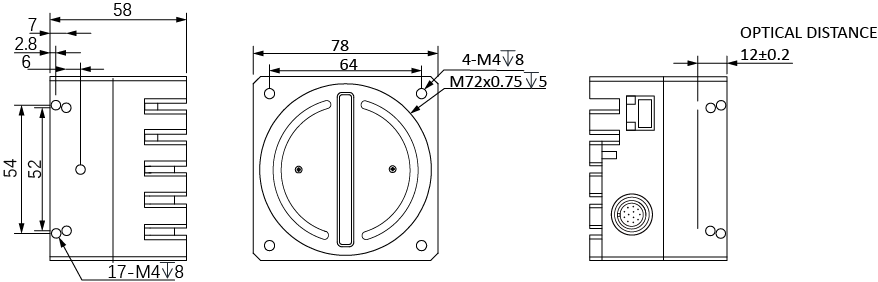

| Dimension(L x W x H) | 78mm× 78mm× 58mm | |
| Lens Mount | M72*0.75，FBL:12mm | |
| Operating Temperature | Working：-10℃ ~ 45℃，Storage：-20℃ ~ 70℃ | |
| Weight | 550g | |
Software Environment |
||
|---|---|---|
| Driver&SDK | iCap Series Camera Software Suite | |
| Operating System | Windows | |
| Conformity | GenICam | |
