PRODUCTS
VT-LEM2518SWIR-H1
1. High performance, high resolution
2. Safe and non-heat design, C-Mount
3. High reliability and high tightness
4. Special infrared materials and coating design to ensure high transmittance in the infrared band
Inquire now
Product Description

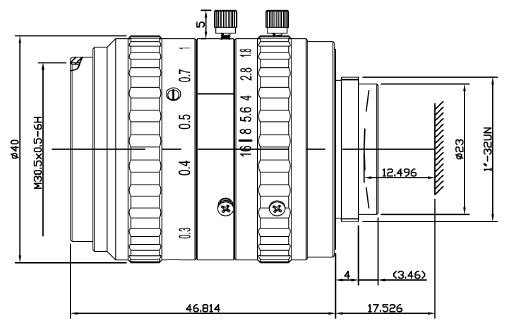

Technical Drawing
Documents & Downloads

General Information

PD No. VT-LEM2518SWIR-H1
PD Line FA Series
Type SWIR Lenses

Optical Specifications

Resolution 5MP
Image Size 1" CCD/CMOS
Focal Length 25 mm
FOV (D/H/V) 35.49°/28.5°/21.74°
Aperture, F/# F1.8
Back Focus 13.09 mm
Distortion <-0.5%
Iris Manual
Focus Manual

Design

Mount C-mount
Filter Size M30.5×P0.5
Dimension ?40×46.81 mm
Temperature Range -10- 50°C(Working),-20- 60°C(Storage)
Weight NA

Standard FA industrial lens


-->
