LEO 64015LW-50gm
1、0.3MP @50 fps
2、Adopts GigE interface and max. transmission distance of 100 meters without relay
3、Longwave infrared range 8-14μm, supports multiple pseudo-color modes
4、Long Wave Infrared Camera - High Sensitivity Uncooled Vanadium Oxide Detector
Inquire now
Product Description
Product parameters
Product Specifications

Information

PD No. CP-0823
PD Line LEO Series

Sensor

Resolution 640 px x 512 px
Sensor Technology Uncooled VOx Detector
Pixel Size 17 μm x 17 μm
Frame Rate 50 fps
NETD <35 mk(F1.0,25℃)
Response Time <10 ms
Image Format Mono 8/12/14, YUV422_YUYV_Packed
Pseudo-color Mode White Hot, Black Hot, Fusion 1, Rainbow,Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot, Dark Blue
Image Processing Supports Brightness, Contrast, Image Detail Enhancement, Digital Noise Reduction (Time Domain, Spatial Domain)

Lens Data

EFL 15 mm
FOV 42.4° × 33.6°
M.O.D 0.1m
Lens Mount M34*0.75

Camera Data

Interface GigE
Digital I/O Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1
Power Input DC 9-24V, Supporting PoE
Power Consumption 12V @2.5W

Design

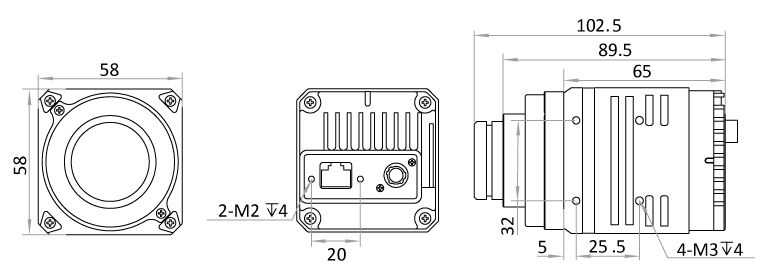

Dimension(L x W x H) 58 mm x 58 mm x 102.5 mm
Weight 275g
Temperature -30- 60°C(Working)
-30~70 °C(Storage)

Software Environment

Driver LEO Series Camera Software Suite (iDatum) or 3rd party GigE Vision Software
Operating System Windows, Linux
Conformity GigE Vision, GenICam
